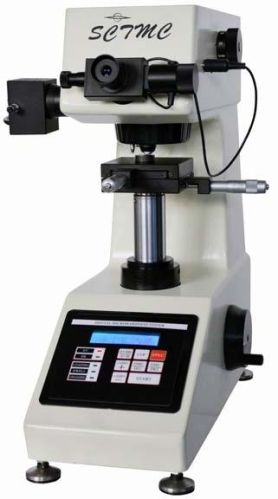

    Digital Vicker Hardness Tester (HVS 1000(Z))

    • Supply TypeManufacturer, Supplier
    • Preferred Buyer Location All over the world

    Designed in accordance with the stated international quality standards, our Digital Vicker Hardness Tester (HVS 1000(Z)) is comprehensively demanded by the buyers. The HVS-1000(Z) Digital Micro....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 13 Years
    • building Nature of Business Supplier
    • Year of Establishment 2000

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    Designed in accordance with the stated international quality standards, our Digital Vicker Hardness Tester (HVS 1000(Z)) is comprehensively demanded by the buyers. The HVS-1000(Z) Digital Micro Vickers Hardness Tester can be acquired from us at the nominal prices.
    More about Digital Vicker Hardness Tester (HVS 1000(Z)) :

    • The Micro Vickers Hardness Tester is a new type high-tech product combining the optical, mechanic and electronic techniques; with a novel and pleasing appearance, direct-viewing, operational functions and reliability, (Z Type: it has a special characteristic that the indenter and the objective shifting are automatically completed); hence it is an ideal instrument for the testing of micro-hardness.
    • Made with a precise design in the field of mechanics, CPU control of the testing process in the electric field, and adopted the highly clear optic testing system and photo-electric sensor in the field of optics, the instrument has multiple functions as the input by means of the touch keys on the operating board, the presetting of the dwell time for test force, the selection of the Vickers or the Knoop measuring methods, regulation of the intensity for measuring light source. All the testing data such as the indentation length, the hardness value, dwell time of the testing force and the number of the measurements are all shown on the LCD screen; and can be outputted by printer as well. By means of RS232 interface, the instrument would be connected with computer.
    • According to the particular requirements of the client, the instrument can be equipped with CCD, video measuring device and photographical devices. The instrument is suitable for testing the micro and thin pieces, the parts with the permeated and coated surface, it is also fit for testing micro Vickers and Knoop hardness value for the crisp materials such as the agate, glass, ceramics and it is, therefore, an ideal hardness measuring instrument for the scientific research institutes, the universities, the industrial production units and the metrological institutes using with for studying and measuring.


    Technical Specifications :

    • Test forces: 0.098N(10gf), 0.245N(25gf), 0.49N(50gf), 0.9807N(100gf),
    • 1.961N(200gf), 2.942N(300gf),4.903N(500gf), 9.807N(1000gf)
    • Displayed Hardness Value Hardness Range Max Tolerance
      • ï¼ï¿½200ï½ï¿½300ï¼ï¿½HV0.05 ±5.0%
      • (400ï½ï¿½500)HV0.1ï¼ï¿½ï¼ï¿½700ï½ï¿½800ï¼ï¿½HV0.2 ±4.0%
      • (700ï½ï¿½800)HV0.5ï¼ï¿½HV1 ±3.0ï¼ï¿½
    • Test Force Application Method: automatic loading and unloading
    • Amplification of the Microscope: 400× (for the measurement),
    • 100× (for the observation)
    • Dwell time of the testing force: 0~60s (5 seconds as a unit)
    • Min. graduation value of the testing drum wheel: 0.0625μm
    • Max. height of the specimen: 100 mm
    • Distance between the center point of the indenter and the exterior panel: 98mm
    • Weight of the main body: 30kg
    • Power source: AC220V/50~60Hz
    • Overall dimension (L x W x H): (480×305×545)mm


    Accessories (The Packing List)

    • The main instrument (including a micro Vickers Indenter, a 40â�³ Objective and a 10â�³Objective)
    • The Accessories Kit
    • Special Accessories
      • Knoop Indenter
      • Hardness Test Blocks
      • Metallurgical Specimen Cutter
      • Metallurgical Specimen Mounting Press
      • Metallurgical Specimen Polisher
      • CCD Image Measuring System
