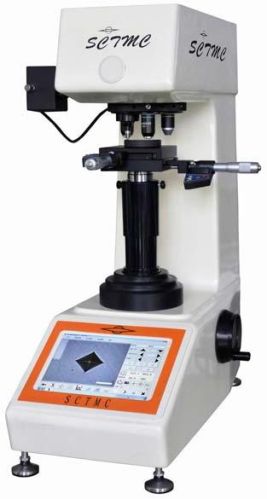

Digital Vicker Hardness Tester (XHVT 5Z)

Get in touch with us for acquiring superior grade XHVT-5Z/10Z/30Z/50Z Intelligent Digital Vickers Hardness Tester at nominal prices. You can place even the bulk orders of Digital Vicker Hardness Tester (XHVT 5Z) with us and we will deliver them on time.
More about Digital Vicker Hardness Tester (XHVT 5Z) :
This instrument is a new generation of Vickers hardness tester. It adopts the integrated design of hardness tester and computer; all the testing parameters can be selected on the panel computer. With touching screen, it operates quickly and conveniently and displays clearly and intuitively. With CCD image acquisition system, it can show dynamic indentation image, lock the image and automatically get the Vickers hardness value. With high measuring accuracy and stable performance, it avoids human errors and achieves domestic advanced level.
Main Features :

• Integrated design of hardness tester and computer. With Windows 7 operating system, it has all functions of computer. It can also be connected to the monitor, printer and other output devices.

• With three measuring objectives, automatic recognition and shifting between the objective and the indenter.

• The lifting screw adopts the worm and gear structure for smooth transmission.

• Test force application: automatic loading, dwelling and unloading.

• With the function of hardness scale conversion.

• It can automatically save the measuring data, generate the hardness-depth curve and save as WORD document.

• With built-in CCD image automatic measuring system, the indentation displays clearly and intuitively and the hardness value can be automatically got.

• Digital cross test table makes the measurement more accurate, and it can be equipped with X-Y automatic test table (optional) to realize the automation of Vickers hardness testing.


Technical Parameters :

• Test force application method : Automatic loading, dwelling and unloading

• Shifting method between indenter and objectives : Automatic shifting

• Dwell time of the test force : 0~60s

• Digital camera pixel : 1.3 million

• The Max. Height : 180 mm

• The Max. Depth : 130 mm (From the center)

• Overall dimension (L×W×H) : 560×335×635 mm
