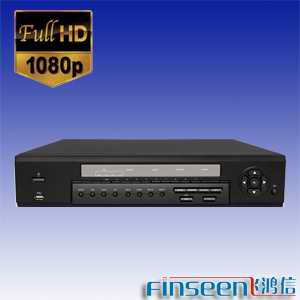

Digital Video Recorder, Brand Name : Finseen

We are offering 16 channel sdi digital video recorder, 1080p real time fs-sdi416-dvr.
finseen fs-sdi416-dvr adopts high performance video processing chips and embedded linux. It utilizes the most advanced technologies, such as standard h.264, 16 ch 1080p record and 16 ch playback, compatible with hdmi 1920*1080 output, full remote control via ie browser, mobile surveillance (by cell phones), etc. It has all the powerful functions and is of high stability
hd-sdi series. High definition digital video surveillance recorder
model fs-sdi404-dvr fs-sdi408-dvr fs-sdi416-dvr
video input 4ch hd-sdi (1080i50/60,1080p25/30 720p25/30/50/60) 8ch hd-sdi (1080i50/60,1080p25/30 720p25/30/50/60) 16ch hd-sdi (1080i50/60,1080p25/30 720p25/30/50/60)
video output hdmi1080p,vga1080p hdmi1080p,vga1080p sdi (1920x1080 60i)
audio input 4ch 8ch 16ch
audio output 1ch and hdmi
video/audio compression h.264/g.711
alarm 4ch input /1ch output 8ch input/1ch output 16ch input/1ch output
multi operation quadplex (playback, recording, backup, network)
record resolution ntsc/pal 1080p 20fps 40fps 80fps
720p 48fps 96fps 192fps
640x360 60fps 120fps 240fps
record quality grade 5 levels
record mode continuous / schedule / motion/ sensor/ manual
pre recording up to 20minutes
posting recording up to 20minutes
playback multi decoding 1,4 1,4,8 1,4,8,9,16
search mode timeline, event, archive, log, specific time
display frame rate ntsc: 30fps/ch, 60 fields; pal: 25fps/ch, 50 fields
capacity of 1 hdd 3tb
internal hdd number 2ea 2ea 4ea(max. 8ea)
usb port 2 (front 1, rear 1)
s.m.a.r.t hdd error check and reporting using by alarm and e-mail
operation ir remote control, front button, mouse, keyboard controller
console & pos 1 rs-232c
ptz & keyboard control 1 rs-485
dynamic dns free ddns
dual network streaming 640x360/320x180 100fps(hd,tbd) 640x360/320x180 200fps(hd,tbd) 640x360/320x180 400fps(hd,tbd)
web viewer (1:1) live live, search, backup, ptzf, remote setup, remote upgrade
3g mobile viewer (1:1)live live, search, ptzf
client software (1:1) live live, search, backup, ptzf, remote setup, remote upgrade
cms (1:n) live, search, backup, ptzf, remote setup, remote upgrade
watermarking yes
dls (day light saving) yes
ntp(network time protocol) yes
internal beep by video loss, hdd error
multi-language yes (more than 20 languages)
3g mobile
iphone / android / blackberry
power dc 12v 5a ac 100~120v/200~240v, 50/60hz,280w
operation temperature 5°c - 40°c, during storage: -10°c - +50°c
net weight (gross weight) 4.2kgs (6.3kgs) 6.9 kg (9.1 kg)
dimension 382mm x 342mm x 74mm 434mm x 432mm x100mm
