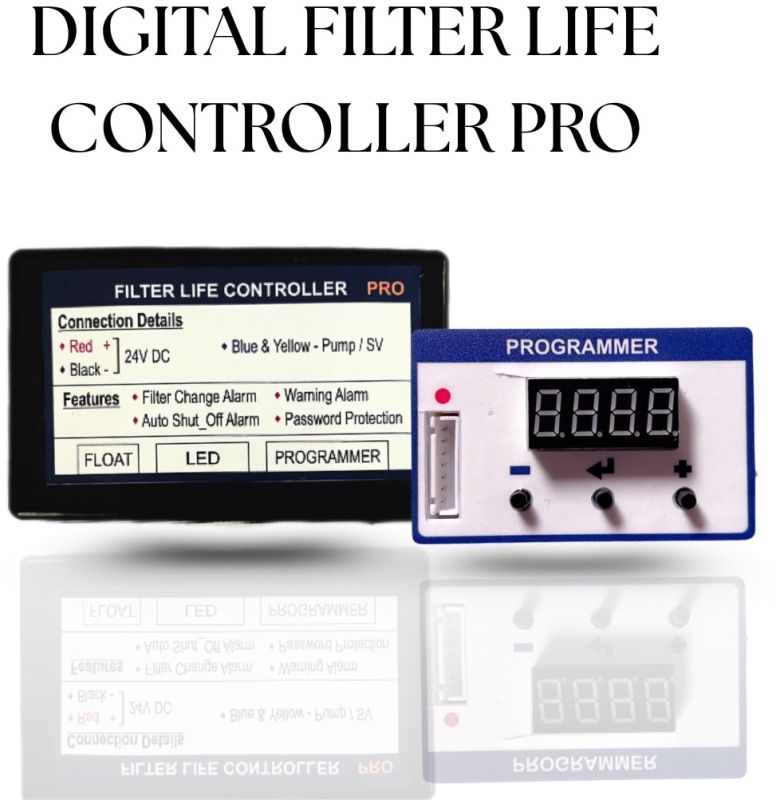

Electric Digital Water Filter Controller

RO Timer Controller with Auto Shutoff & Service Reminder – 24V DC

Product Description:

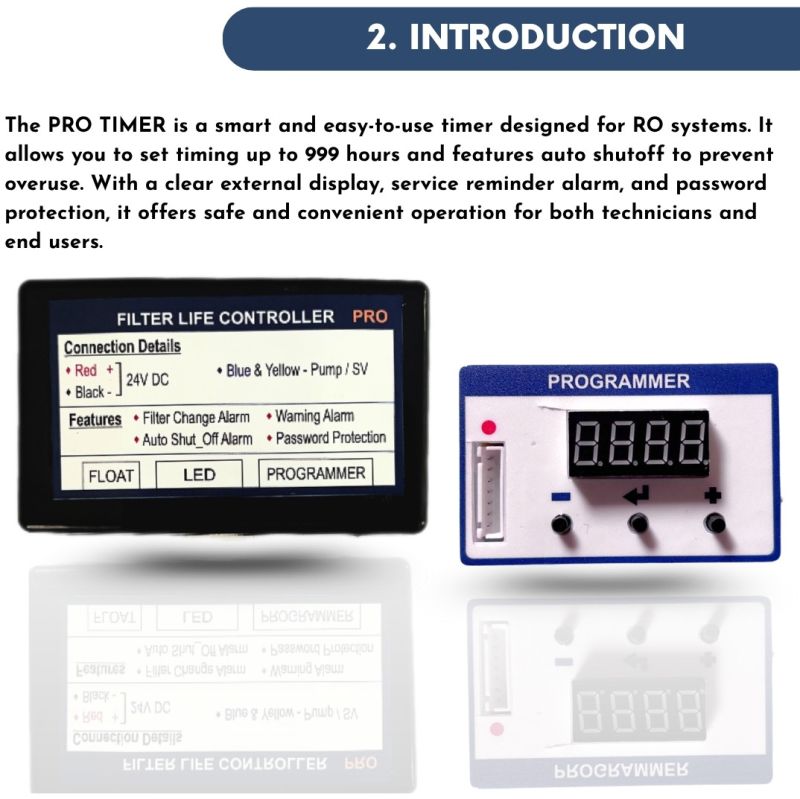

This compact and budget-friendly RO Timer Controller is specially designed for water purifiers to help customers and technicians manage filter service schedules, prevent pump overruns, and ensure smooth operation.

With an external display, multiple programmable timers, and support for various float sensors, it offers customization, safety, and long-term reliability.

⚙️ Specifications:

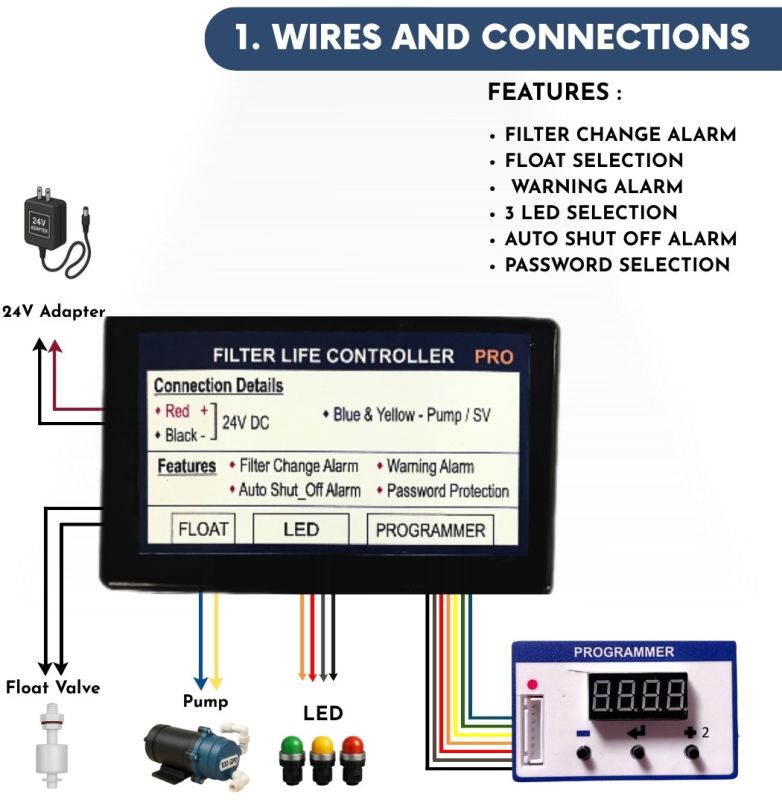

• Power Input: 24V DC

• Output: 24V DC (Supports Pump & Solenoid Valve)

• Display: External Display for Timer Programming

• Sensor Compatibility: Magnetic Float / Weight Sensor / Conductivity Float

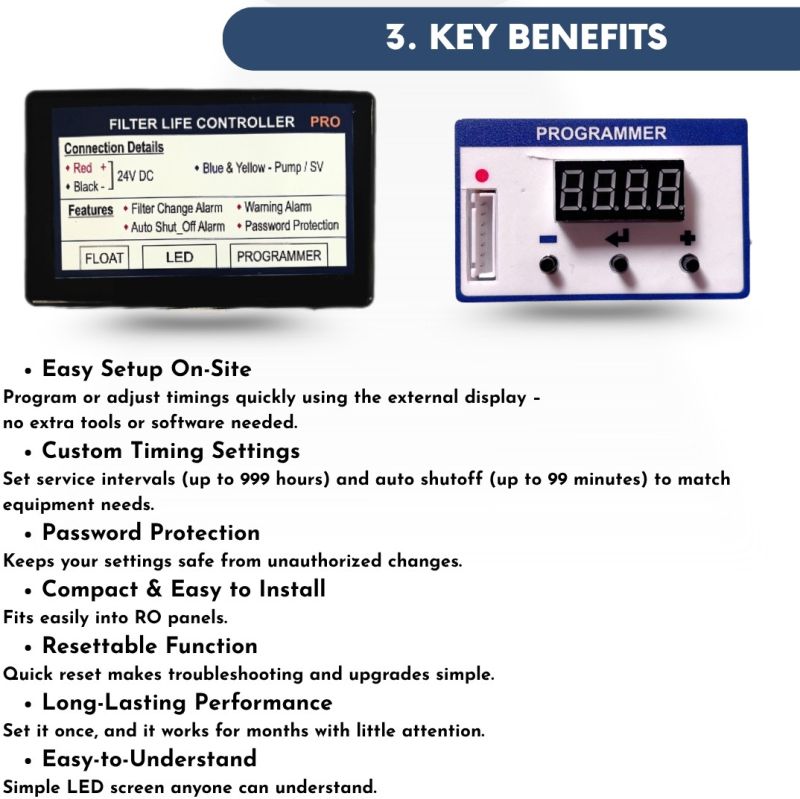

✨ Key Features:

• ✅ Compact & Cost-Effective Design

• ✅ Set Total Working Time up to 999 Hours

• ✅ Set Auto Shutoff Time up to 99 Minutes

• ✅ Service Reminder Alarm before shutdown

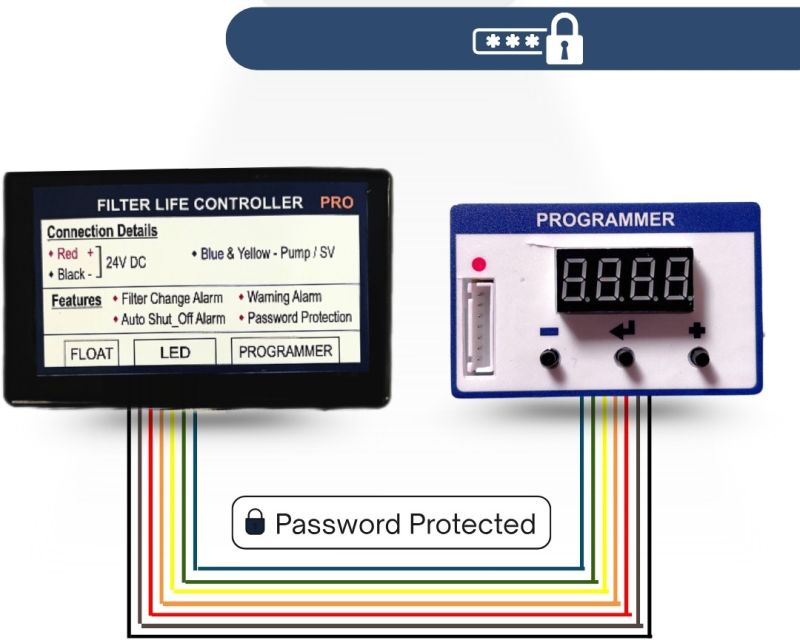

• ✅ Password Protected Settings with Reset Option

• ✅ Supports different types of float sensors (Magnetic / Weight / Normal Float)

Timer Functions Explained: A. Total Timer

Tracks total usage hours of the filter (set between 99–999 hours).
⏳ Works only when the pump is running.
Example: If set at 300 hours, and the pump runs 2 hrs daily, it lasts ~150 days.

⚠️ B. Warning Timer

Gives an alert before the service time ends to remind users to service the filter.
 Example: If Total Timer is 300 hrs, set Warning Timer at 20 hrs. You’ll get a beep alert when 20 hrs are left.

C. Auto Shutoff Timer

Automatically turns off the filter to avoid pump damage or tank overflow.
Example: If tank fills in 30 mins, set this timer at 40–60 mins as safety backup.

D. Float Direction Setting

Compatible with different float types.

• 1 = Conductivity Float (Metal Pin)

• 2 = Magnetic Float (Magnet Sensor)
  Example: If using a magnetic float, simply set to 2.

Ideal For:

• RO + UV Water Purifiers

• Commercial and Domestic Water Filtration Systems

• Service Providers & RO Technicians

Order Now and make your RO systems smarter, safer, and service-ready!
