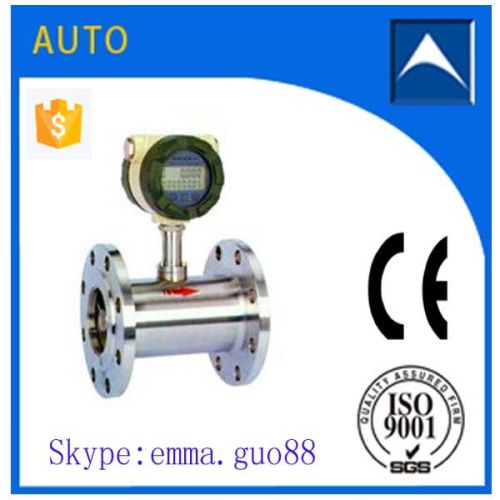

Digital Water Flow Meter Turbine Flow Meter

We are offering digital water flow meter turbine flow meter. Diameter and connection 4,6,10,15,20,25,32,40 thread connection
(15,20,25,32,40)50,65,80,100,125,150,200 flange connection
accuracy ±1%r,±0.5%r,±0.2%r(customer-made)
range 1:10, 1:15, 1:20
instrument material 304 stainless steel, 316l stainless steel, etc
medium temperature -20°c——+110°c
environment condition temperature:-10°c——+55°c, relative humidity: 5%-90%, atmospheric pressure: 86-106kpa
output signal sensor: pulse frequency signal, low voltage: ≤0.8v,high voltage: ≥8v
transmitter: two-wire 4-20ma current signal
power supply sensor: +12vdc,+24vdc(optional)
transmitter: +24vdc
site display type: instrument with 3.2v lithium battery
signal transmission wire stvpv3×0.3 ( three-wire), 2×0.3 (two-wire)
transmission distance ≤1000m
signal wire interface basic type: hausmann interface, explosion proof: internal thread m20*1.5
explosion class basic type: non-explosion proof product, explosion proof: exdllbt6
protection degree ip65
