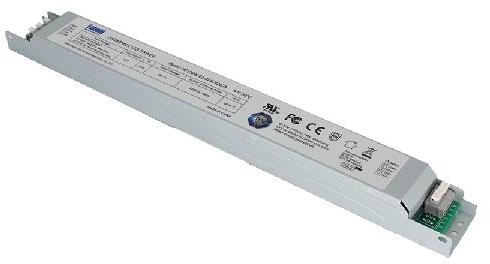

Dimmable 24V Constant Voltage LED Driver

Fahold Electronic LED drivers have been designed to meet the evolving and expanding lighting industry requirements, while delivering a reliable and constant performance for a wide portfolio of LED lighting applications.Fahold LED drivers are flexible, compact size and capable to withstand the toughest environment, which makes them the best selection for all your lighting needs Product description: • Constant voltage LED Driver • Output voltage 24 V • Max. output power 100 W • Dimmable via PWM0-10VRXDali LED dimmers • Nominal life-time up to 50,000 h • 5-year guarantee            Typical application • Cove lighting, facade accent lighting, ceiling integration,linear lighting. Technical details • 24 V, 100 W • Very good THD performance in wide load range < 5 % • Ripple and Noise  0.36V p-p • Small cross section • Push terminal for simple wiring   Wiring guidelines • The cables should be run separately from the mains connections and mains cables to ensure good EMC conditions. • The LED wiring should be kept as short as possible to ensure good EMC. The max. secondary cable length is 2 m (4 m circuit). • The LED Driver has no inverse-polarity protection on the secondary side. Wrong polarity can damage LED modules with no inverse-polarity protection. • Wrong wiring of the LED Driver can lead to malfunction or irreparable damage.
