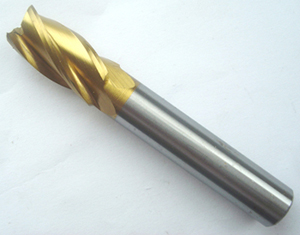

DIN 844 HSS End Mill

DIN 844 Hss End Mill
(1) Material: W4341, W9341, M2, M35, M42;
(2) Fully Ground;
(3) White Finish; Titanium Coated, TiAlN Coated;
(4) Round Shank, One Flat Key Shank;
Art No. Size Shank Flute Length Allover Length
40401C020 2 6 7 51
40401C030 3 6 8 52
40401C040 4 6 11 55
40401C050 5 6 13 57
40401C060 6 6 13 57
40401C070 7 10 16 66
40401C080 8 10 19 69
40401C090 9 10 19 69
40401C100 10 10 22 72
40401C110 11 12 22 79
40401C120 12 12 26 83
40401C130 13 12 26 83
40401C140 14 12 26 83
40401C150 15 12 26 83
40401C160 16 16 32 92
40401C170 17 16 32 92
40401C180 18 16 32 92
40401C190 19 16 32 92
40401C200 20 20 38 104
40401C210 21 20 38 104
40401C220 22 20 38 104
40401C230 23 20 38 104
40401C240 24 25 45 121
40401C250 25 25 45 121
40401C260 26 25 45 121
40401C270 27 25 45 121
40401C280 28 25 45 121
40401C290 29 25 45 121
40401C300 30 25 45 121
40401C320 32 32 53 133
40401C360 36 32 53 133
40401C400 40 40 63 155
40401C450 45 40 63 155
40401C500 50 50 75 177
DIN844 HSS End Mills --------- Long Series
Art No. Size Shank Flute Length Allover Length
40401C020L 2 6 10 54
40401C030L 3 6 12 56
40401C040L 4 6 19 63
40401C050L 5 6 24 68
40401C060L 6 6 24 68
40401C070L 7 10 30 80
40401C080L 8 10 38 88
40401C090L 9 10 38 88
40401C100L 10 10 45 95
40401C110L 11 12 45 102
40401C120L 12 12 53 110
40401C130L 13 12 53 110
40401C140L 14 12 53 110
40401C150L 15 16 63 123
40401C160L 16 16 63 123
40401C170L 17 16 63 123
40401C180L 18 16 63 123
40401C190L 19 20 75 141
40401C200L 20 20 75 141
40401C210L 21 20 75 141
40401C220L 22 20 75 141
40401C230L 23 20 75 141
40401C240L 24 25 90 166
40401C250L 25 25 90 166
40401C260L 26 25 90 166
40401C270L 27 25 90 166
40401C280L 28 25 90 166
40401C290L 29 25 90 166
40401C300L 30 25 90 166
40401C320L 32 32 106 186
40401C360L 36 32 106 186
40401C400L 40 40 125 217
40401C450L 45 40 125 217
40401C500L 50 50 150 252
