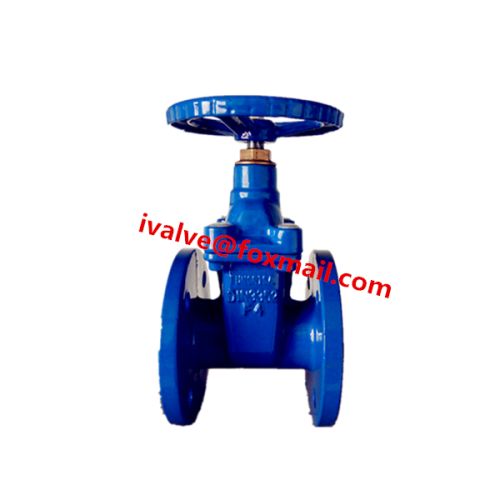

Ductile Iron DIN F4 Flanged Gate Valve, Brand Name : GateValves

₹ 895.95 / Piece

MOQ10 Piece(s)
MaterialDuctile Iron
Port SizeDN40-DN700
Brand NameGateValves
PressurePN10/PN16
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameGateValves
MaterialDuctile Iron
PressurePN10/PN16
Port SizeDN40-DN700
Temperature Of Media-45~+135
Country of OriginChina

DIN F4 Flanged Gate Valve
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint
DIN Resilient Seated Gate Valve
Specifications
1. Suitable media: Water.
2. Flange: DIN2501EN1092-2 PN101625.
3. Nominal diameter: DN40~DN600 (1 12"~24").
4. Tightness check: API 598ISO 5208EN12226-1.
5. Working pressure: PN10PN16PN25 or 10Bar16Bar25Bar.
6. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
7. Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80).
8. Face-to-face conform to DIN3352DIN3202 F4F5(ISO5752 Series1415)EN558-1 Series1415.
Main parts materials
A) Seat: EPDMNBRBrass.
B) Gland follower: Brassductile iron.
C) Bolt and nut: Stainless steel, steel with zinc.
D) Stem: Stainless steel, brass, bronze, steel with zinc.
E) Hand-wheel: Ductile iron malleable Ironcarbon steel.
F) BodyBonnetDisc: Cast ironductile ironCIDIGG25GGG40GGG50HT200QT450.
Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (Each PC into one bubble plastic bag, several PCS into one Plywood case).
