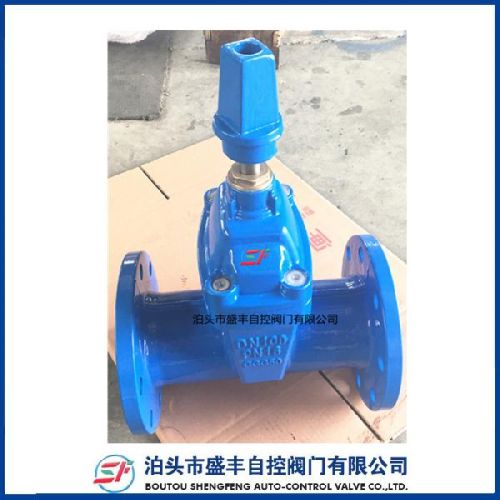

DIN F5 Resilient Seated Ductile Iron Gate Valve

Product presentation:
the valve disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformaition.norising stem resilient seated gate valve solve the problem in general gate valve as leakage ,rusting etc,and saves installation space.it is used widely in tap water industry ,sewage treament,shipping construction,petroleum,chemicals,food,pharmacy,tectile,electric power,metalluragy and energy ,system's pipeline to adjust and shut off fluids.
Performance specification：
working pressure：1.0-1.6mpa
sealing test:1.1mpa 1.76mpa
shell test:1.5mpa 2.4mpa
design standards：din3352
flange standards:din2501
structure length：din3202
working temperature：nbr≤80℃
epdm≤120℃
