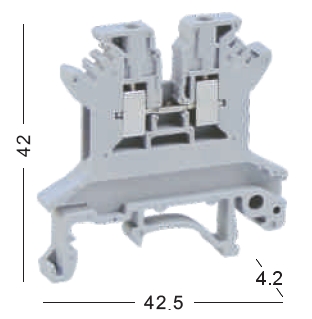

PA Din Rail Terminal Block UK-1.5N, Brand Name : starpai

₹ 0.80 / Piece

MOQ1000 Piece(s)
MaterialPA
Brand Namestarpai
Current15A
Number Of FlowerUK1.5N
Wire cross1.5mm2
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shenzhen Starpai Technology Limited Company

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerUK1.5N
Brand Namestarpai
MaterialPA
Current15A
Wire cross1.5mm2

Din-rail Terminal Wire arrage:0.2-16mm2
Detailed Product Description
Capability
Approval
MetInfo enterprise content manager system | MetInfo CMS
MetInfo enterprise content manager system | MetInfo CMS
Standard
UL
IEC
Voltage
250V
Current
15A
Wire size
12-4AWG
0.2-16mm2
T/W/End plate
12.2/42.5/1.5mm
Height (NS35:7.5/NS35:15/NS32)
54/61.5/59mm
Rated Surge Voltage/Contamination Class
8kV/3
Stripping Length
11 mm
Screw Thread/Tightening Torque
M4/1.2Nm
Internal Cylindrical Gage
B7
Insulating Material/Inflammability Class
PA/V-0
Specification
Model
PCS
(1)Terminal Block
PC 16
50
(2)End Cover
D-PC 16
150
(3)Fixed Bridge
2-P
3-P
5-P
10-P
FBI 10-12
100
(4)Step Bracket
(5)Insertion Bridge
2-P
3-P
10-P
EB 10-12
50
(6)Isolator Bridge Bar, 10 P
(7)Bridge Bar Isolator
(8)Switching Bridge
(9)Separating Plate
TS-K
50
(10)Separating Plate, Width:1.5mm
ATP-PC
50
(11)Test Plug Socket
PSB 4/7/6
100
(12)Test Plug Socket, Insulated
PSBJ 4/15/6
(13)Zack Strip
ZB 10
200
