Diode Laser Marking Machine, Brand Name : Chuyuan

We are offering diode laser marking machine.

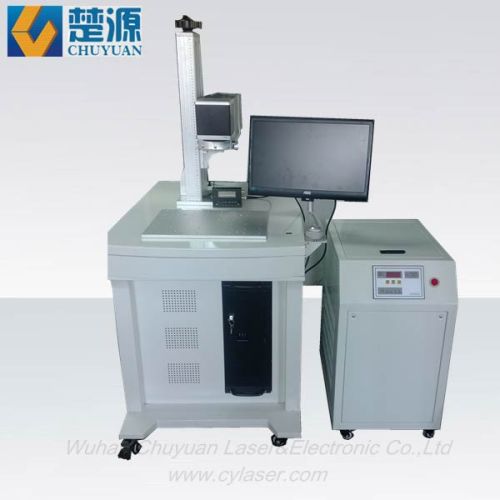

Yag 50w diode laser marking machine
features:
cy-ms50 diode laser marking machine is also called semiconductor side pumped yag laser marking machine,it's a new generation of standard equipment replacing the lamp pump laser marking machine that can be running under high load operation for a long time to finer spot, high power and efficiency, low energy consumption,suitable for high demanding standard products in high speed or online precision marking.
1.high conversation efficiency,compact design,low power consumption,cost-effective
2.imported components,full sealed structure,high reliablility and good stability.hermetically sealed.
3.high marking speed and mark lines more attractive.
4.perfect software function,with light path preview function,visual accurately.
application:
diode laser marking machine is available in a variety of non-metallic surface and text marking permanent metal parts, is widely used in hardware tools, battery, plumbing equipment, classified equipment, instruments and meters, electronics, clocks and watches, glasses, measuring tool, cutting tool, automobile and motorcycle accessories, luggage accessories, bearings, hour, etc. With very good marking effect for hard material, brittle
tech data
model
cy-ms50
laser wavelength
0.808nm
rated laser output power
50w
marking area diameter
50*50mm100*100mm200*200mm(optional)
marking depth
0.01-0.2mm(depend on the material)
marking breadth
0.015-0.1(depend on the material)
least significant
0.2mm
scan speed
7000mms
scanning system
laser vibration lens
pulse frequency
0.1-99.9khz
laser crystal
nd:yag
collimating location way
red beam indication
working table cnc system
ipc(3-axis selective)
working voltage
380vthree-phase220vmono-phase50hz
main machine power
1.5kw
cooling machine power
1p
cooling mode
outside water cooling
