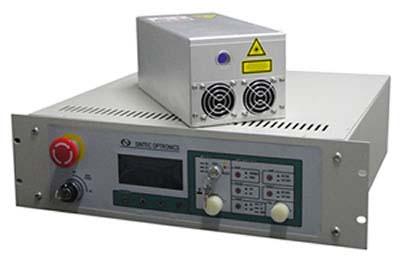

Diode Pumped Laser

Fiber Laser Marking Machineslaser
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Enriched with high grade machinery and expert personnel, we manufacture and export superior quality Diode Pumped Laser. Diode Pumped Laser is used for marking all kinds of metals. Our Diode Pumped....

View More Details

Send Enquiry

Product Details

Enriched with high grade machinery and expert personnel, we manufacture and export superior quality Diode Pumped Laser. Diode Pumped Laser is used for marking all kinds of metals. Our Diode Pumped Laser has rugged design and sturdy construction. Precisely designed to perfection, the Diode Pumped Laser is available in numerous specifications. Moreover, our Diode Pumped Laser facilitates easy operation and least maintenance.

Applications

End-pumped diode laser is suitable for marking on various materials, such as nylon, ABS, PVC, PES, steel, titanium, copper, plating materials, coating materials, sprayed materials, plastic, rubber, epoxy resin etc.
Diode end-pumped laser has excellent applications in various fields, such as mobile phone, jewellery, crafts, scribing, film engraving, laser marking & engraving, resistance trimming, range finding, scientific research etc.

Graph

Download Detail File : Click Here

Specifications

Part number	DPSS-1064-12
Laser wavelength	1064nm
Average laser power	12W@CW, 3.0W@2kHz, 6.3W@10kHz, 8.5W@20kHz
Laser beam diameter	1mm
Beam divergence	≤1mrad
Pulse width	10~30ns
Pulse energy	1.5mJ@2kHz, 0.63mJ@10kHz, 0.43mJ@20kHz
Peak power	142kW@2kHz, 48kW@10kHz, 26kW@20kHz
Beam mode	TEM₀₀
Beam quality M²	M²≤1.2
Modulation frequency range	1kHz - 60kHz
Power stability	≤10μrad
Cooling	Air cooling
Warming time	3ï½�5min
Input electricity	220VAC/50Hz
Environmental temperature	15^o - 30^o (non dewing)

Comparison Between End-Pumped Lasers And Other Lasers

Machine Type	M²	Frequency(Hz)	Power consumption	Features
End-pumped (Air-cooling)	<1.2	<50k	<0.5kw	Long lifetime, Maintenance-free
Side-pumped (Water-cooling)	<3	<10k	<2.0kw	Change water per 3 months
Fiber laser (Air-cooling)	<1.5	20k~50k	<0.5kw	Long lifetime, high price
Lamp-pumped (Water-cooling)	<10	<10k	<5.0kw	Change lamp per 2000 hrs

The above table shows that the end pump laser is significantly better than any other lasers whether in terms of laser characteristics or in the use and maintenance.
