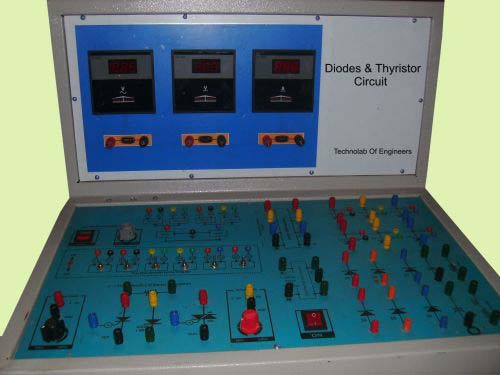

Diodes and Thyristors Power Circuit Trainer Kit

Get in touch with us to purchase Diodes and Thyristors Power Circuit Trainer Kit. We have a decade of experience in this domain. We have an advanced manufacturing facility to bring forth the finest quality kit used for conducting experiments like V-I characteristics of the diode, SCR, and Triac. Using this kit can be used for designing single phase controlled rectifier circuit and three phase controlled rectifier circuit. We supply this premium grade kit all over the world.

Details : In this set up diodes and thyristors with power supply is very useful for different experiments like V-I characteristics of diode, SCR, Triac. Single phase controlled rectifier circuit and three phase controlled rectifier circuit can design easily on this set up. This control is feature packed with the latest advancements. The Kit Perfectly fabricated with the highest grade components, The Panel known for its high performance and accurate results.

Features :

• Different test points provided on panel at various stages in the panel.
• Built in IC based control circuit.
• Set of patch cords.
• Variable DC power supply.
• Details description of operation theory and proper guidance.
• Experiment - To Study V-I characteristics of diode, SCR, Triac To study Single phase controlled rectifier circuit and three phase controlled rectifier circuit

Specifications :

• Complete front panel display of components & power supply.
• Variable DC power supply 0 10v.
• Variable DC power supply 0  25v.
• Set of DIODEs , Thyristors, Triac.
• Set of resistive, capacitive and inductive loads.
• Three phase auto transformer .
• Three phase MCB with LED power indicator.
• Single phase controlled rectifier firing unit.
• Three phase controlled rectifier firing unit.
• Single phase step down transformer.
• Three phase step down transformer.

Accessories :

• Complete operating manual with details description.
• Patch cords and connecting wires
