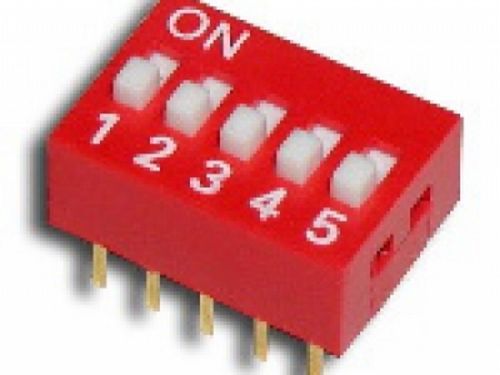

Dip Switch, Brand Name : starpai, Packaging Type : red

MATEHIAL
Base: UL94V-O PBT Thermoplaslic black
Cover: UL94V-O PBT Thermoplastic,red ,blue ,black
Button: UL94V-O PA66 White
Terminal: Phosphor Bronze, Gold plating
ELEURICAL
Electrical life: 2000 operations per switch 24VDC,25mA
Non-switching rating� lOOmA, 50VDC
Switching rating: 25mA 24VDC
Insulation resistance: (At 500VDC) 100MΩ/min
Dielectric strength: 500VAC, 1 min
Capacitance: Max5pF
The loop: Single contact single selection
MECHANICAL
Operating force: 8N(max)
Stroke: 2.00mm
Opetation temp: 20�~+70�
Stodge temp: -40�~+85�
THE LOOP SINGLE CONTATC SINGLE SELECTION
For best results,please follow these reconmmendation:Keep all switch
contacts in their "OFF"position for operations
Wave soldering: Recommended solder temperature at 250±5�,3�5 seconds
Hand welding:
Use 30 watt iron control temperature at 320�,the welding
time is about 2 seconds
Cleaning:
Cleaning process using ultrasonic method,can give better
results,use steam mode,temperature should not exceed 51�
