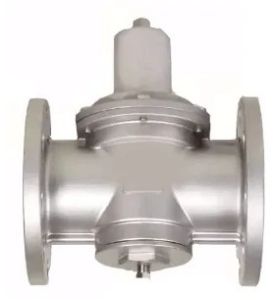

Direct Acting Pressure Reducing Valve

A Direct Acting Pressure Reducing Valve Manufacturer in USA is a control valve that reduces the pressure of a fluid to a desired output value. It’s designed to be self-acting and compact and is often used for saturated steam and compressed air.
Working:
When flow begins, the diaphragm moves the valve seat away from the valve seal to allow flow. When there is no flow, the downstream pressure increases and pulls the valve seat up against the valve seal to close the valve. The required outlet pressure is set using a dial on top of the valve. Turning the dial adjusts the tension on the internal compression spring, which holds the diaphragm in place. Rotating the handwheel in a clockwise direction causes a downward movement, which compresses the control spring and extends the bellows to set the downstream pressure. This downward movement is transmitted via a pushrod, which causes the main valve to open.
Direct Acting Pressure Reducing Valve Manufacturer in USA here are the advantages:
1. Easy to operate and adjust
2. Require less maintenance
3. Stable secondary pressure
4. A high flow rate for their class
5. Work in the presence of air pockets
6. Don’t have hunting or vibrations
7. Compact and lightweight.
8. Made with stainless steel wetted parts for corrosion resistance.
9. Easy to clean
