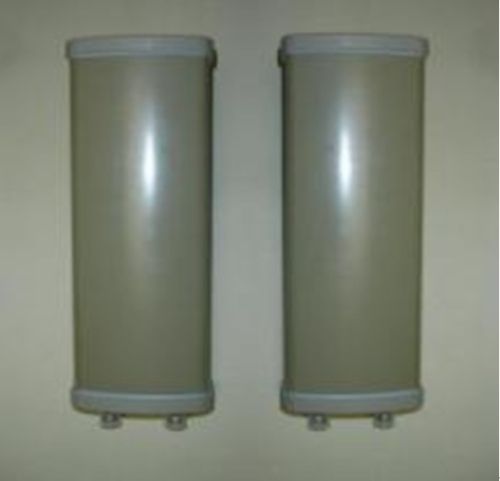

Directional Antenna RD-AN201 35016555

Get Latest Price

MOQ1 Set(s)
Size350*165*55
Weight3.5kg
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Rodmo Technologies Co. Ltd

FUJIAN

View Number

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features:
Directional antenna is an antenna which radiates greater power in one or more directions allowing for increased performance on transmit and receive and reduced interference from unwanted sources. Directional antennas like yagi antennas provide increased performance over dipole antennas when a greater concentration of radiation in a certain direction is desired.
Specification:
Model RD-AN201 (low power)
Frequency Range F1: 800MHz & 1900MHz F2: 900MHz & 1800MHz
Gain 8 dBi (800MHz & 900MHz)
9 dBi (1800MHz & 1900MHz)
VSWR ≤1.5
(3dB)HPBW 85°H-plane 55°E-plane (800MHz & 900MHz)
60°H-plane 55°E-plane (1800MHz & 1900MHz)
Polarization Vertical Polarization
Input Impedance 50(Ω)
Type of Port SMA
Height/width/Depth 350*165*55mm (per unit)
one set with two units
Weight 1.5kg (each unit) 3.5KG/set
