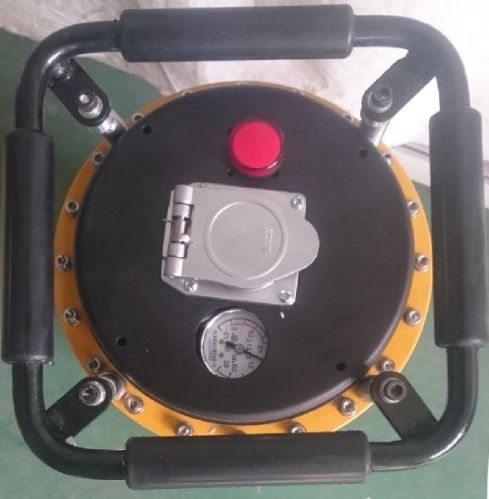

Directional Portable X Ray Machine

Directional portable X Ray Machine Main character: Compact x-ray generator, anode grounded, forced air cooling Light weight, portable, easy to use The ratio of the exposure fine to the stop time is 1:1 High voltage ,time delay function protects the operator from radiation Strictly controlled the production techniques, nice sculpt, reasonable design. Orignal:China Can adjust exposure parameters with keys ( easy operation.) Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field Can adjust high voltage slowly for protecting X-ray generator Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes. Glass Tube Directional Portable X Ray Generator Model Output voltage kv Input KVA Focal size mm Beam angle Max penetration mm Weight kg Dimension mm XXQ1005 50-100 1.2 0.8x0.8 40degree 8 11.1 190x190x530 XXQ1605 60-160 1.5 0.8x0.8 40 19 15.2 225x225x620 XXQ2005 100-200 2.0 1.5x1.5 40 29 23 285x285x650 XXQ2505 150-250 2.5 2.0x2.0 40 39 35 320x320x750 XXQ3005 170-300 3.0 2.3x2.3 40 50 45.5 345x345x830 XXQ3205 180-320 3.2 2.5x2.3 40 55 45.5 345x345x840 XXQ3505 180-350 3.4 2.8x3.0 40 60 47 345x345x840
