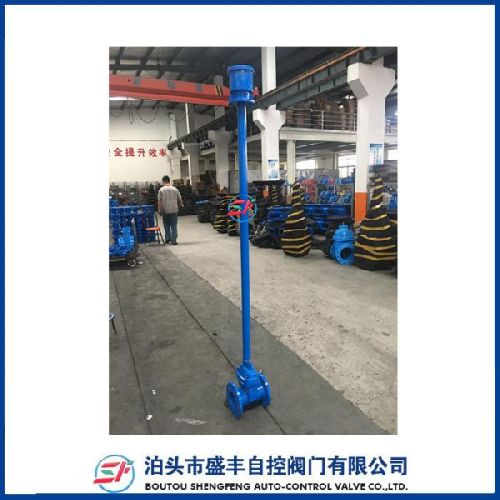

Directly Buried Extension Rod Elastic Seal Gate Valve

purpose:
This valve is mounted on various enderground pipeline and used as a big-way installation for tap water ,sweage treatment etc.
characteristics:
Directly buried technique .no need of a gate valve,reducing the laboring for installation and the buried depth can be adjusted.long life,without internal leak,of the merits with an elastic gate valve,no affection to the traffic,safe and reliable,integrated with the underground portion,effectively protected against robbing.
performance specification:
Nominal pressure:1.0mpa 1.6mpa 2.5mpa
shell test:1.5map 2.4mpa 3.75mpa
sealing test:1.1mpa 1.76mpa 2.75mpa
working temperture:≤100℃
applicable medium ：water sewage
