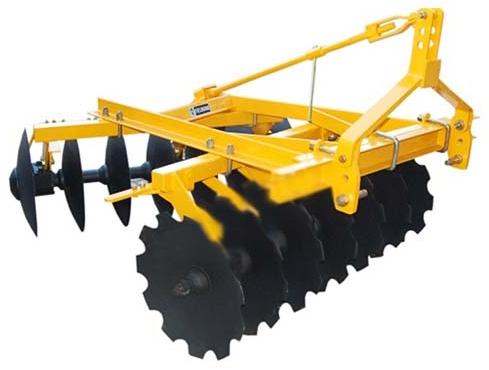

Disc Harrow

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Disc Harrow is used in open field workings for the superficial ploughing, shattering of clods, preparation of soil for sowing, burial of organic substances & remains. The usage of Disc Harrow can also be seen to air the soil and to eliminate the weeds. Disc Harrow is used for breaking the roots. Disc Harrow is ideal for the light and medium soil. Features High quality steel discsDepth of the harrow is 6 inch.Easily transportable - as it gets easily attached and mountedMaintenance is easy but need to be scheduledOne tyre in rear side to cover the central area

View More Details

Send Enquiry

Technical Specifications

Model No.	MI Harrow 8 x 8	MI Harrow 9 x 9	MI Harrow 10 x 10
Frame	Square pipe box frame	Square pipe box frame	Square pipe box frame
Gang bolt	Central Square solid Bar With split gangs	Central Square solid Bar With split gangs	Central Square solid Bar With split gangs
Length	1867 mm	1867 mm	1867 mm
Width	1867 mm	2095 mm	2325 mm
No. of disc	16	18	20
Type of disc	Round	Round	Notched (Front/Rear)
Disc diameter	560 mm	560 mm	560 mm
Distance between discs	228 mm	228 mm	228 mm
Bearing hubs	8	8	8
Total Height	1080 mm	1080 mm	1080 mm
Mast height	1054 mm	1054 mm	1054 mm
Tyre with spring	1	1	1
Weight in kgs. (Approx.)	565	595	627
Power Required (hp)	35	50	60
