Contact SupplierAgrovision type Disc Plough can handle the toughest ploughing jobs. For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance. For soft sticky ground and sandy soil, depth can be controlled through the built-in depth control. The under frame and unit-to-unit clearances are adequate to cope with trashy conditions. Perfect alignment of the sub-beams carrying the Disc bottoms is maintained by virtue of the frame construction. An adjustable and spring-loaded furrow wheel takes care of the side draft and the implement moves smoothly. Disc tilt angle can be varied in three stages to perform on various types of soils.
Â
Advantages
Â

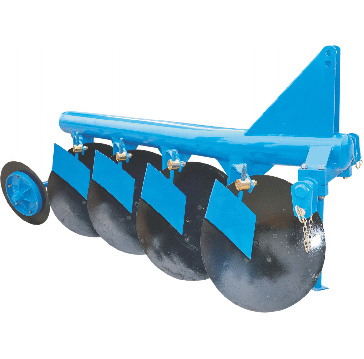

AGROVISION DISC PLOUGH (TUBULAR FRAME) disc plough is designed to work in all types of soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing.
It is used to open the new farm to process for cultivation.
it can be used easily in Hard soil and Rooted areas.
It is especially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.
Â
Features
In conformity with the soil conditions it is being produced with 2, 3, 4, 5, 6, 7 & 8 Disc (Bottom) version with an option for extra kit for converting it to extra disc plough.
It is directly mounted to the tractors.
The extra heavy-duty seamless tubing frame has high trash clearance allowing the plough to operate under heavy crop residue.
MODEL | A-DPTF-2 | A-DPTF-3 | A-DPTF-4 | A-DPTF-5 (4+1) |
FRAME | Heavy Duty seamless tubular frame (OD 168 mm with 8 mm thickness) | Heavy Duty seamless tubular frame (OD 168 mm with 10 mm thickness) | Heavy Duty seamless tubular frame (OD 168 mm with 10 mm thickness) | Heavy Duty seamless tubular frame (OD 168 mm with 12 mm thickness) |
MOUNTED | CAT- II | CAT- II | CAT- II | CAT- II |
LENGTH | 1800 mm | 2400 mm | 3000 mm | 3600 mm |
WIDTH | 825 mm | 1050 mm | 1250 mm | 1500 mm |
HEIGHT | 1200 mm | 1225 mm | 1250 mm | 1250 mm |
DISCS | 660x6 mm Boron steel | 660x6 mm Boron steel | 660x6 mm Boron steel | 660x6 mm Boron steel |
DISC SPACING | 550 mm | 550 mm | 575 mm | 575 mm |
COLTER DISC | 500x6 mm boron steel | 500x6 mm boron steel | 500x6 mm boron steel | 500x6 mm boron steel |
SCRAPPER | 6 mm adjustable | 6 mm adjustable | 6 mm adjustable | 6 mm adjustable |
BEARINGS | 2 Nos. Taper roller | 2 Nos. Taper roller | 2 Nos. Taper roller | 2 Nos. Taper roller |
WIDTH OF CUT | 500 - 550 mm | 875 - 925 mm | 1150 - 1200 mm | 1575 - 1625 mm |
REQUIRED TRACTOR | 40 - 45 HP | 50 - 60 HP | 70 - 80 HP | 90 HP & Above |
APPROX. WEIGTH | 275 Kg. | 400 Kg. | 500 Kg. | 600 Kg. |
