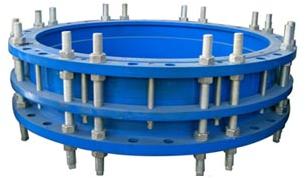

Dismantling Joints

Our dismantling joint is designed to be the final closing piece in the pipe network, to ease
the assembling and disassembling for later maintenance of a pump or valve. A standard
adjusting range of 50mm on length and a small lateral and angular misalignment can be
accommodated. This adjustability of the dismantling joint facilitates for easy removal of
pumps and valves in circumstances of inspection, maintenance or replacement.
Features and Benefit:
•Compensate for differences in flange to flange distance
•Simplify the installation of pipelines
•Integrate a valve or pump into a flanged pipe network
•Flange connection, flange drilling can base on DIN PN6/16/25, ANSI CLASS150/300, JIS, EN, etc
•Reduce assembling time
•Dismantle for service, inspection and maintenance
•Epoxy powder coating and bolting made of steel
•Drinking water approved
Specifications
Nominal diameter: DN80mm to DN3000mm
Maximum working pressure: 4.0 Mpa
Vacuum KPa(mmHg) 44.9(350)
Operating temperature: -20℃-80℃
Corrosion resistance Good
Applicable media Sea water, drinking water, slurry, industrial sewage.
