Warning MessageAll user messages can be supported with graphics. This special feature therefore considerably shortens perception and consequent reaction times to the appearing messages. (UR 1041000)
DisplayWith the 128x64 Blue Graphic screen lighting used on the reader, maximum visibility is provided under low-light or non-lighted conditions. Graphic screen also supports visual messages and logo applications. Entire ASCII character set defined on the PC can
Reading Distance10 cm (max.)
InstallationAssembly kit provides fast and easy installation..
PersonalUp to 16.896 employees can be introduced to each reader in offline mode.
BodyABS, coating or dyeing.

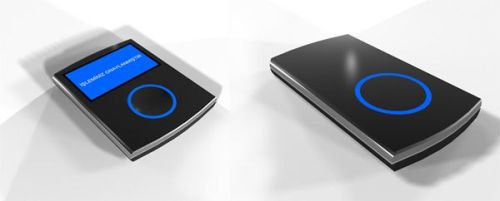

Dimensions110 x 80 x 22 (mm) / with display (UR 1041000) 89 x 55 x 20 (mm) / without display (UR 1042000)
Technical ServiceFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and the Balkans.
The Gate is open and personel passed infoThrough two separate input ports located on the device, information regarding current gate position and personnel access details are forwarded to the control software for evaluation.
Working TypeWhen connected to a PC, the system functions online in accordance with the instructions sent by the PC. In case connection to the PC is interrupted for some reason, the system resumes its functions offline in accordance with its offline operating paramete
Operational Temparature(-20) x (+50) C
Power Input / Consumption9 V DC / 4W
DisplayWith the 128x64 Blue Graphic screen lighting used on the reader, maximum visibility is provided under low-light or non-lighted conditions. Graphic screen also supports visual messages and logo applications. Entire ASCII character set defined on the PC can
AddressingReader addresses as well as communication speed can be adjusted. Hardware allows connection of up to 250 readers to each line (per com port).
Response Rate300 ms
InstallationAssembly kit provides fast and easy installation..
Warning MessageAll user messages can be supported with graphics. This special feature therefore considerably shortens perception and consequent reaction times to the appearing messages. (UR 1041000)
Language SupportTypically two languages are supported for the user option. User messages appearing on the screen can be reset as desired through a PC. (UR 1041000)
Language SupportIt is possible to dispatch customized messages for the card users. This feature allows the user to read a dispatched emergency message as he presents his card to the first card reader. (UR 1041000)
Logo SupportUser can upload his own 128 x 64 black-white bmp files on the system. This special feature enables the user to customize the system according to his specific needs. (UR 1041000)
CertificatesISO 9001:2000
Communication / FrequencyRS485 / 13,56 MHz
