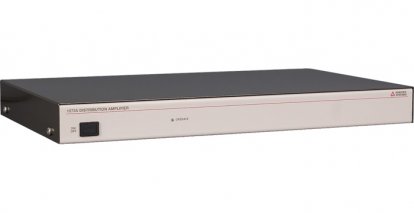

Distribution Amplifier

Looking for a time code distribution solution? Need even more outputs? Is your installation spread across a wider geographic area? Is a second clock not practical? The Model 1073A was built to address these and other challenges, while providing the flexibility to configure the device to fit specific needs.
Designed to buffer and distribute time codes and signals generated by sources such as Models 1088B, 1084ABC, 1093BC and 1092ABC. Model 1073A includes three separate channels, each with four high drive outputs. Via copper or the optional fiber optic board, you can link additional facilities easily, and still get the high accuracy without adding more clocks.
Output capabilities include AC and DC coupled modes. In AC-coupled mode, the unit can receive and distribute timebase and reference frequency signals up to 10 MHz. In DC-coupled mode, Model 1073A can distribute 5 V CMOSTTL logic-level signals such 1 PPS and unmodulated IRIG-B timecode.
Note: Because of the limiting amplifiers and frequency limit when AC-coupled, the Model 1073A is not suitable for distribution of modulated IRIG-B signals.
