Distribution Boards

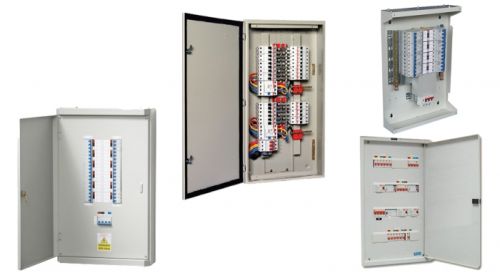

We offers compact Final distribution boards (FDB),a design aimed for safety, reliability and availability in the electrical building installation.Available in busbar and multi row types. Surface or flush mounting on requests and requirements.

TECHNICAL SPECIFICATIONS
Single row type:Range : 6, 9, 13, 18 and 22 Modules
Multi row type:Max. load : 100 amps
Max. voltage:230 / 400 V ac, 50 / 60 Hz
Range:16, 32, 48, 64 and 80 modules ; 1, 2, 3, 4 and 5 rows
Busbar type:Max. load : 250 amps
Max. voltage:230 / 400 V ac, 50 / 60 Hz
Range:4, 6, 8, 12, 16, 20 and 24 TP&N ways
12, 18, 24, 36, 48, 60 and 72 SP&N ways
Degree of protection:IP 41, pan assemblies IP 20
Enclosure finish:Gray, RAL 7035/7032
Fault level:16 kA

SALIENT FEATURES

• Compact DBs which occupy minimum space
• Raised neutral link for easy wiring
• Detachable din bar with end stoppers for easy assembly of breakers
• Supplied with fully shielded bus-bars
• Level marks for providing indication for fitment in wall
• Supplied with neutral & earth link, top & bottom detachable plates

AVAILABLE EXTENSIONS AND AUGMENTATIONS

• In accordance with BS 5486 Part 12 and BS EN 60439-1
• Modular design concept enables flexible selection of incomers, extension boxes, etc
• 250A continuously rated copper busbar
• 16kA short circuit capacity
• Fully shrouded phase busbars for increased safety
• One piece (no welds or rivets) phase busbars to eliminate the risk of hot spots
• Accepts 6kA, 10kA and 15kA MCBs and flying lead RCBOs
• Ample space behind pan assembly aids wiring installation
• 25mm² terminal cable capacity on earth & neutral bars
• Shrouded neutral terminal bars for increased safety

REGULATORY COMPLIANCE

• Compliant to IEC standards 61439-1/61439-2/61439-3/60898
• Designed to meet local technical standards, practices and requirements
