    50 Hz Distribution Transformer, Phase : 415/11000
    • Distribution Transformer
    • 842272

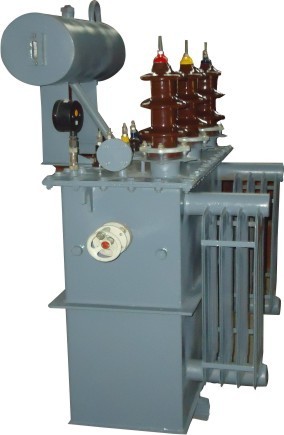

    50 Hz Distribution Transformer, Phase : 415/11000

    Get Latest Price
    • Frequency50 Hz
    • Phase415/11000
    • TypeOil Filled With ONAN (Oil Natural Air Natural) Cooling
    • TransformerAs per Size
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Macro Plast Private Limitedverified-icon
    location Surajpur, Greater Noida, Uttar Pradesh
    5.0/5fill iconfill iconfill iconfill iconfill icon(1)
    View Number
    • calendar Member Since 9 Years
    • building Nature of Business Exporter
    • gst icon GST No. 09AABCM0136D1Z0

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Phase415/11000
    • Frequency50 Hz
    • TransformerAs per Size
    • TypeOil Filled With ONAN (Oil Natural Air Natural) Cooling
    • Ratings16 KVA to 400 KVA.
    • ApplicationIndustrial
    • FeatureRust resistance

    Details :

    • Distribution Transformers are utilised for supplying the Consumer Loads.
    • Steps down the High Voltage to Low Voltage.
    • With or without Off-Load Tap Changer (OLTC).
    • Single Phase OR Three Phase.
    • The Distribution Transformers that MACROPLAST manufactures consists of following


    Features :

    • Stacked Core surrounded by Primary & Secondary Windings housed in a Steel Tank.
    • Primary & Secondary Terminals or Studs.
    • High Voltage & Low Voltage Insulators/Bushings.
    • Off-Load Tap Switch.
    • Silica Gel Breather.
    • Expansion Tank or Conservator.
    • Oil Level Indicator.
    • Thermometer Pocket.
    • Oil Filling Plug.
    • Oil Drain Valve.
    • Arcing Homs.


    Technical Information For Distribution Transformers

    TypeOutdoor,Oil Filled.
    DesignationONAN Cooled.
    Rated Output(KVA)16 to 400.
    Primary Voltage(KY)                                                             11 151115
    Nominal System Voltage(KV) 11 151115
    Highest System Voltage (KV) 12 17.51217.5
    Power Frequency \Withstand Voltage (KV) for 60 sec. 28 382838
    Impulse Withstand Voltage (KVp) 75 957595
    Secondary Voltage (K\V)
    Voltage at No Load (KV) 0.433 0.4000.430.4
    Power Frequency Withstand Voltage (KV) for 60 sec. 3 333
    Vector Group Dyn-11 Dyn-5Dyn-11Dyn-5
    N o. of Phase 33
    Rated Frequency (Hz) 5050
    Connection Delta/StarDelta /Star
