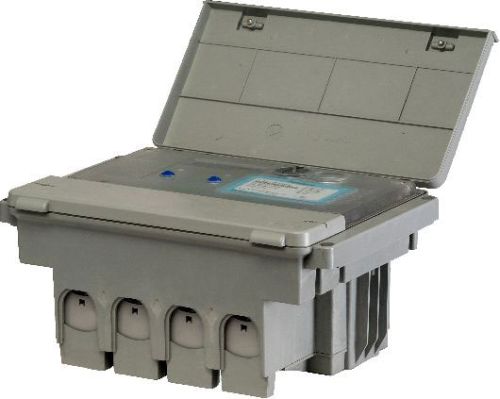

Distribution Transformer Meter

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are one of the well-known Suppliers of Distribution Transformer Meter in Mumbai. Distribution Transformer Meter offers revenue protection features for consumer tariff applications including....

View More Details

Send Enquiry

Product Details

We are one of the well-known Suppliers of Distribution Transformer Meter in Mumbai. Distribution Transformer Meter offers revenue protection features for consumer tariff applications including anomaly detection. Distribution Transformer Meter is a composite unit operating over a current range from 40-200A through built-in CTs. Distribution Transformer Meter is a composite metering unit specially designed for Low Tension Current Transformer (LTCT) segment. Distribution Transformer Meter offers load profiling and anomaly detection for consumer tariff applications and energy audit. Distribution Transformer Meter is suitable for distribution transformer (DT), industrial and commercial metering segments.
Features and Benefits of Distribution Transformer Meter

No need of external CT, meter box and accessories
Product accuracy class - 1.0
Wide current range, 40-200A
Thread-through meter âï¿½ï¿½ cable passes through meter
Tamper detection- voltage, current, magnetic influences
Peak kVA load profiling
Events recording
- High/ Low Voltage
- Under/ Over load
- No/ Partial/ Full supply
High resolution energy registers
Configurable metrology LED
Time of day registers - energy and maximum demand
Communication options
- PACT port
- PACT and RS232 port
- PACT and RS485 MODBUS
IP 54 compliant
Self billing feature
Option of inductive coupled external power pack

Technical Specifications

Electrical
Connection type	Direct connected
Wiring configuration	3 phase 4 wire
Voltage range	240 V/230 V (P-N)
Current range	40 - 200 A
Accuracy	Class 1.0
Main frequency	50 Hz ±5%
Burden	As per standards
Insulation class	4 kV RMS 50 Hz
Impulse withstand	6 kV
Approvals
Standards compliance	IS13779, IEC62053-21, IEC62052-11
Mechanical
Dimensions (WXH)	273 x 365 x 199 mm (approx.)
Weight	4.5 kg
Enclosure	Double insulated glass-filled polycarbonate
Terminals	Thread through design suitable up to 200 A current
Environmental
Ingress protection	IP 54
Temperature	-10 °C to +55 °C (operating) \| -25 °C to +70 °C (storage)
Humidity	95% non-condensing
Features
Tariff rates	Up to 8 zones
MD energy type	Up to 2
Load survey	400 parameter days with 30 minute integration period
Communication	PACT port, optional RS232, RS485 Modbus
