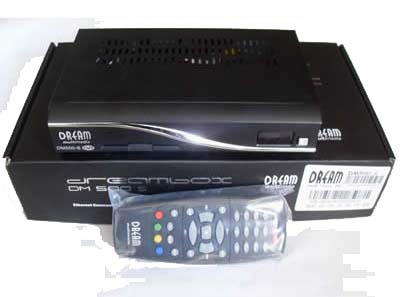

Dm500-c Black TV Receiver

We offer Dm500-c Black. Powerful receiver for digital tv and radio programs. Main features are a 250 mhz ibm powerpc (350 mips). linux op, the dreambox supports the standard linux api (directfb, linux-fb, lirc, .. ) attention: this receiver can share card with ip, record with your pc and so on, we can offer the technology of how to build a share server! features: 1)250 mhz ibm powerpc processor (350 mips) 2)linux operating system 3)1 x smartcard-reader 4)mpeg2 hardware decoding 5)100mbit full duplex ethernet interface 6)2 led status 7)unlimited channel lists for tv/radio 8)channel-change time < 1 second 9)full automatic service scan 10)supports directly bouquet-lists (indirect unlimited) 11)supports epg (electronic program guide) 13)fully adaptable osd in many languages (skin-support) 14)spdi/f interface for digital bit stream out (ac-3 / dts) 15)1 x scart-interfaces (fully controlled by software) technical specification: dbc-tuner: frequency range 5 to 858 mhz input impedance 75 ohm input symbol rate 1to 6.9 mbaud/s video decoder: video compression mpeg-2 and mpeg-1 compatible video standard pal g/ 25 hz video formats 4:3 / 16:9 footage 16:9, automatic assimilation for 16:9 tv-device (over scart) letterbox precolating for 4:3 tv-device audio decoder: audiokompression mpeg-1 & mpeg-2 layer I and ii audio mode dual (main/sub), stereo frequency: 32 khz, 44.1 khz, 48 khz, 16 khz, 22.05 khz, 24 khz output analog: output level l/r 0,5 vss on 600 ohm thd > 60 db (1 khz) crosstalk < -65 db output digital: output level 0,5 vss on 75 ohm sampled data filtering 32 khz, 44.1 khz, 48 khz s/pdif-output optical (ac3) video parameter: input level fbas 1 vss +/- 0.3 db on 75 ohm teletext filter in conformity with ets 300 472 standard tv-scart: output: fbas,rgb,s-vhs over osd selectable serielle interface rs 232: typ rs232 bidirectional bit rate 115,2 kbit/s max. plug connector sub-d-9 function update of firmware and preprogramming ethernet: 100 mbit compatible, bi-direktional interface function update of firmware and preprogramming lnb power and polarisation: lnb current 500ma max. ; short-circuit-proof lnb voltage vertical < 14v without load, > 11,5v at 400ma lnb voltage horizontal < 20v without load, > 17,3v at 400ma lnb shut-off at standby-mode count of active satellite position: diseqc 1.0/1.2 sat position / sat option diseqc - rotor control power consumption: < 10w / 12v input voltage: dc12v,alternating acurrent +/- 15% extern power supply: input: 110-240v ac / 50-60hz / 0,6a output: 12v = / 1a others: ambient temperature 15 to 35 centigrade humidity < 80%
