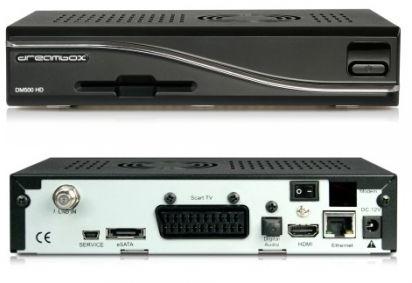

Dm500s Hd

Main features are a 400 mhz processor, the dreambox dm 500 hd supports the linux tv api
have a look to highdefinition tv on your dreambox
10/100mbit compatible ethernet interface
hdmi connector
technical features
400 mhz mips processor
enigma 2, linux operating system
2 led status
mpeg-2 / h.264 hardware decoding
tuner: dvb-s2 or dvb-c/t
1 x smartcard-reader (dreamcrypt ca)
mini usb for service and software update
10/100mbit ethernet interface
1 x scart (rgb, fbas, yuv or s-video)
hdmi
analog modem
s/pdif interface for digital bit stream out (ac-3)
64 mbyte flash, 256 mbyte ram
unlimited channel lists for tv/radio
channel-change time
automatic service scan
directly bouquet-lists
epg (electronic program guide)
multiple lnb-switching control (supports diseqc)
osd in many languages and skin-support
videotext decoder
external 12v power supply
dreambox dm 500 hd technical data
dvb-s / dvb-s2 tuner:
frequency range 950 ... 2150 mhz
demodulation dvb-s (qpsk); dvb-s2 (8psk,qpsk)
symbol rate dvb-s: 2 ... 45 mbaud/s, scpc/ mcpc
dvb-s2: 10 � 31 mbaud/s (8psk) , 10 �30 mbaud/s (qpsk)
also now available dvb-c/t hybrid tuner version!
video decoder:
video compression mpeg-2 and mpeg-1 compatible, h.264
video formats 4:3 / 16:9
letterbox for 4:3 tv-device
audio decoder:
audiokompression mpeg-1 & mpeg-2 layer I and ii, mp3
audio mode dual (main/sub), stereo
frequency: 32 khz, 44.1 khz, 48 khz, 16 khz, 22.05 khz, 24 khz
output analog:
output level l/r 0,5 vss on 600 ohm
thd > 60 db (1 khz)
crosstalk
output digital:
output level 0,5 vss on 75 ohm
sampled data filtering 32 khz, 44.1 khz, 48 khz
s/pdif-output optical, toslink
ausgang video:
ausgangspegel fbas 1 vss +/- 0.3 db an 75 ohm
video parameter:
input level fbas 1 vss +/- 0.3 db on 75 ohm
teletext filter in conformity with ets 300 472 standard
tv-scart:
output: fbas, yuv, rgb, s-video
miniusb service connector
function: firmware update
ethernet:
10/100 mbit compatible interface
function: firmware update
analoge modem:
analoge modem for internet connection
lnb power and polarisation dvb-s/s2 tuner:
lnb current 500ma max.; short-circuit-protected
lnb voltage vertical < 14v no load, > 11,5v at 400ma
lnb voltage horizontal < 20v no load, > 17,3v at 400ma
count of active satellite position:
diseqc 1.0/1.1/1.2 and usals - rotor control
power consumption:
external psu
input:
110-240v ac / 50-60hz / 0,6a
output:
12v = / 3,0a
physical specification:
ambient temperature +15â°c...+35â°c
humidity
size (w x d x h): 195 mm x 130 mm x 40 mm
weight: 0,7 kg
