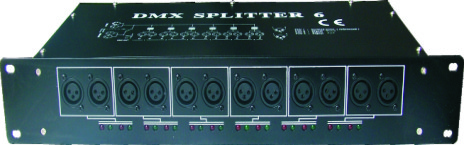

Dmx Splitter 6

We are offering dmx splitter 6
product number：amt-8022
product feature：
1 this unit is a 1 to 6 dmx distributor.
2) every channel has a amplifier and signal led indicator respectively.
3) input signal and output signal ( include signal gnd cable ) is isolated electrically. The final dmx splitter is connected with terminal resistance to restrain disturbing signal.
4) 3 pin or 5 pin socket for signal input and output
5) built-in fuse：f0.5a 250v 5x20mm；
6) power input :ac110~120v 60hz ac220~240v 50hz。
7) power cord：3g0.75 america type, europe type or other standard one
size(mm)： 535x240x120mm 1pcsctn
nw: 2.8 kgs gw: 3.4kg
