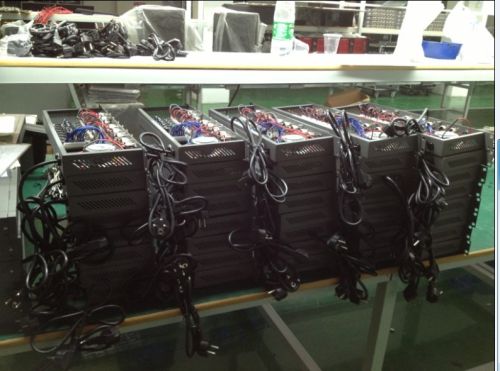

We are offering dmx512 isolation signal amplifier.
Main technical specifications:
model:mtl - ds - 106amtl - ds - 203a
signal input:dmx512
signal output:dmx512
electric isolated function:insulating resistance out input and output ends�1000m;isolated voltage�1000v
working temperature:minus 10 centigrade to 55centigrade
relative working humidity:20% � 90%
storing temperature:minus 40 centigrade to 55centigrade
storing relative humidity:10% � 93%
atmosphele pressure :86kpa to 106kpa
weight:2.8kg dimensions:490ã�300ã�45ï¼�mmï¼�
power supply:ac200 -240vacï¼�50â±3hz
features:
one loop input and one loop direct output
six loop light isolated signal output
isolated electric supply of every loop
output signal indication
dmx signal input connector:-d5m
dmx signal direct output connector:-d5f
dmx signal output connector:-d5fã�4
-d3fã�2
