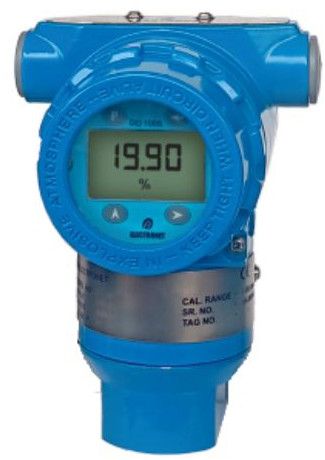

DO 100S Digital Dissolved Oxygen Transmitter

DO 100S – Dissolved Oxygen TransmitterDescription

Electronet Series DO 100S is a high-performance Dissolved Oxygen Transmitter designed for reliable and continuous online measurement in industrial applications. It accepts input from a DO electrode and converts the signal into a standard 4–20 mA output (optional HART).
The transmitter includes an LCD display for real-time indication, while Zero/Span adjustments are easily accessible for quick calibration. Its rugged construction and user-friendly interface make it suitable for demanding process environments.

• Online dissolved oxygen measurement

• Auto / manual temperature compensation

• 4–20 mA DC output / 4–20 mA with HART (Generic)

• Clear LCD display for online indication

• Simple operating interface with intuitive pictographs

• 2-wire loop-powered system

• Ideal for continuous industrial monitoring

• Type: From DO Electrode

• Signal: 4–20 mA DC / 4–20 mA with HART (Generic)

• Transmitter Accuracy: ±0.25% F.S.

• Repeatability: ±0.05% of span at 25°C

• Response Time:< 1000 mSec

• Type: LCD Display

• Calibration Range: 0 to 20.9 ppm

• Power Supply: 24V DC, Two-wire loop powered

• Power Consumption:< 50 mW

• Isolation: 1.4 kV between input, output & supply

• Temperature Compensation: RTD PT-100 / PT-1000

• Temperature Coefficient: ±0.01% per °C

• Ambient Conditions: –20°C to 70°C / 5–95% RH (non-condensing at 25°C)

• Dimensions: 155 mm (H) × 105 mm (W) × 130 mm (D)

• Mounting: 2” pipe mounting

• Weight: Approx. 1 kg

• Housing: Cast aluminum with epoxy coating (NEMA 4X) / SS316

• Protection Class: Flameproof CMRI IIA IIB / Weatherproof IP-67

• Sensor Connection:

  1. BNC connector

  2. Terminal connection

• Electrical Conduit Entry:

  1. M20 × 1.5 (F)

  2. ½" NPT (F)

• Flow-through Assembly: SS316 / PP
