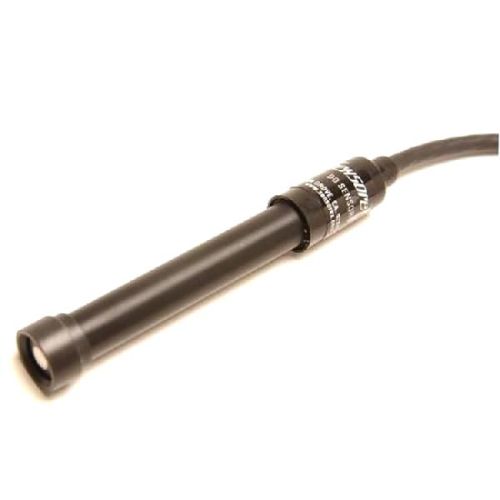

DO1200 Laboratory Dissolved Oxygen Sensor, Brand Name : Sensorex

Do1200 and do1200tc dissolved oxygen sensors
item no.: do1200h, do1200t, do1200tch, do1200tct, 971598, 971598tc
reliable galvanic sensing technology
compact 12mm design
for portable, laboratory or on-line use
optional integral atc element
easy to use pre-membraned replacement caps
the do1200 and do1200tc feature dependable galvanic technology. No warm up period is required. Sensors are supplied with fast responding hdpe membrane caps for portable or lab use. Optional ptfe membrane caps are available for on-line or heavy uv exposure applications. Fill solution is replaceable when required.
The do1200 is supplied without internal temperature compensation. The do1200tc can be supplied with a variety of user defined atc elements. Standard cable length is 2.5 feet with a tinned lead termination. Longer cable lengths and connectors are available for an additional charge. For on-line use, our fc75p 34 inch in-line fitting may be ordered to provide for mounting into 34 inch fnpt threaded tees.
Specifications
range: 0-20 mgl
body material : epoxy and noryl
max temperature: 50 degrees c
saturation output: hdpe = 47mv +- 9mv, ptfe = 33mv+-9mv
pressure: 0-100 psig (7.5 bar)
calibration: single point in air
response time: after equilibration, hdpe 1 minute for 2mv, ptfe 2 minutes for 2mv
