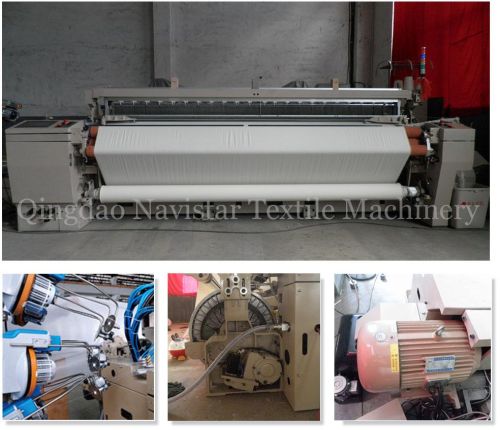

Dobby Shedding Air Jet Loom, Brand Name : Hangxing

We are offering Dobby Shedding Air Jet Loom.
This machine adopts main and assistant nozzles and reliable 4 shafts linkage at both sides, 6 shafts linkage, positive cam shedding by whitch the types of fabric are increased, as well as electronic let-off system, electronic picking, electronic taking up, frequency conversion slow-speed inching system with the ability of seeking weft automatically and easy operation.
[Characteristic]
1. Doouble cloth-pressing roller lifter
When guiding cloth, double cloth-pressing roller lifter can lift up and down roller at the same time; And then guide cloth through aperture with batching roller with saving much of labor and time. Moreover, its very secure.
2. New double rear beam configuration
Depending on swing frame, it can add one fixed beam thant can rotate with yarn; It can keep press angle of inducing beam for yarn. Meanwhile, it makes inducing stress more precise
3. High strength framework
Framework is made of two-side box type sheet, beam and bracket in middle, which can produce escellent product even foe producting heavy or high tense fabrics.
4. Computer-controlled automatic refueling device
5. Double swing the main jet device
Double swing the main jet device used in tandem swing boost the main nozzle to nozzle flow is more gentle on the role of weft, and further improve the machine performance.
6. Fold into the side of pneumatic devices
By the electronic control of the jet stream within the folded end to make yarn, weaving side to achieve the fabric light, simple structur, easy to use and will not damage due to machanical patrs to affect the quality of cloth edge.
7. Oil bath electric let-off configuration
Servo electric let-off shift confihuration adopts oil bath lubrication with reducting noise and abrasion
8. Super start major engine
Independently developed by our company, the super atart major engine is featured with powerful power, steady speed and excellent performance, which renders the machine a longer life.
