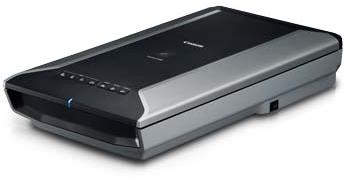

Specifications for CanoScan 5600F
Scanner Type Flatbed
Scanner Element CCD 6-line colour
Light Source White LED Cold Cathode Fluorescent Lamp
Optical Resolution*1 4800 x 9600dpi
Selectable Resolution 25 - 19200dpi
Scanning Bit Depth
Colour 48-bit input (16-bit for each colour)
48-bit or 24-bit output (16-bit 8-bit for each colour)
Grayscale 48-bit input (16-bit for each colour)
16-bit (film scanning only) or 8-bit output
Preview Speed*2 Approx. 3secs. (Colour A4: 300dpi)
Scan Speed*3 Approx. 11secs. (Colour A4: 300dpi)
Scanning Speed*4 (Reflective)
Colour 4800dpi: 14.6msecline
2400dpi: 14.6msecline
1200dpi: 9.7msecline
600dpi: 3.7msecline
300dpi: 1.8msecline
Grayscale, B&W 4800dpi: 14.6msecline
2400dpi: 14.6msecline
1200dpi: 9.7msecline
600dpi: 3.7msecline
300dpi: 1.8msecline
Scanning Speed*4 (Film)
Colour, Grayscale, B&W 1.8 - 58.4msecline
Max. Document Size A4, LTR: 216 x 297mm (8.5 x 11.7in.)
Scanner Driver TWAIN WIA (Windows XP Windows Vista)
Film Type No. of Frames
35mm strip 6 frames
35mm slides 4 frames
120 format film -
Effective Scanning Area Pixels
35mm film*5 Area: 24 x 36mm
Pixel*6: 4535 x 6803
Scanner Buttons (EZ Buttons) 7 buttons (PDFx4, COPY, PHOTO FILM, E-MAIL)
Interface USB 2.0 Hi-Speed (Mini-B Port)
Operating Range
Temperature 10 to 35°C
Humidity 10% to 90% RH (20% to 80% RH for film scanning), without condensation formation
Power Supply AC 100 - 240V, 5060Hz
Power Consumption Approx. 19W max. (In operation)
Approx. 3.2W (Standby)
Approx. 0.4W
Environment (Plan)
Regulation RoHS (EU), WEEE (EU)
Eco-Label Energy Star
Dimensions (W x D x H) 272 x 491 x 97mm
Weight Approx. 4.3kg
