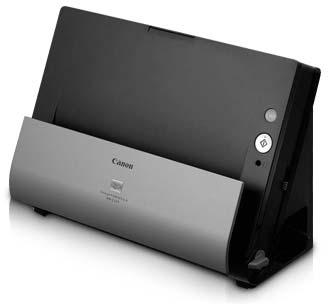

Document Scanner

We are offering document scanner.
Specifications for dr-c125
type desktop sheetfed scanner
document feeding automatic sheet feeding
document size plain paper: width: 50.8 - 216mm (2" - 8.5")
length: 53.9 - 356mm (2.12" - 14")
use long document mode to scan documents up to 3,000mm (118.1") long
use straight path to scan documents that are 70mm (2.76") long or less
business card: 50 x 53.9mm (1.97" x 2.12") or larger
vertical feeding only
plastic card: 53.9 x 85.5mm (2.12" x 3.37") (iso standard)
straight path and horizontal feeding only
embossed cards can be scanned
document thickness plain paper: u-turn path: 52 - 128g/m2 (0.06 - 0.15mm)
straight path: 40 - 209g/m2 (0.05 - 0.25mm)
business card: 300g/m2 (140lb. Bond) 0.35mm (0.0138") or less
plastic card: 0.76mm (0.03") or less
feeding capacity 6mm stack (including curls) or 30 sheets of 80g/m2 (20lb. Bond)
scanning element cmos cis
light source led (red, green, and blue)
scanning side simplex / duplex / skip blank page / folio
scanning modes black and white, error diffusion, advanced text enhancement, advanced text enhancement ii (for windows only), 256-level grayscale, 24-bit colour
scanning resolutions 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
scanning speed*1
(a4 / ltr, portrait, 200dpi) 25ppm (simplex) / 50ipm (duplex)
useful functions double feed detection, advanced text enhancement, skip blank page, prescan, auto paper size detection, deskew, batch separation, colour drop-out, colour enhancement, text orientation recognition, continuous scanning, edge enhancement, preset gamma curve, scan area settings, scanning with multistream settings, folio scanning, remove background, moire reduction, background smoothing, full auto mode, reduction ratio adjustment
interfaces hi-speed usb 2.0
software windows: isis / twain driver, captureontouch, presto! bizcard,
omnipage, paperport, ecopy pdf pro office, evernote*2
mac os x*3: twain driver, captureontouch, presto! bizcard,
presto! pagemanager, evernote*2
power requirements ac100 - 240v (50 / 60hz)
power consumption 200 - 240v: scanning: maximum 12.8w
in the sleep mode: maximum 1.9w
with power switch off: maximum 0.5w
operating environment 10 - 32.5â°c (50 - 90.5â°f)
humidity: 20 - 80% rh
dimensions (w x d x h) 300mm (11.81") x 217mm (8.54") x 156mm (6.14") with the feed tray closed
weight approx. 2.6kg
options / consumables exchange roller kit (feed roller and retard roller)
specifications are subject to change without notice.
*1 actual scanning speed may vary depending on your system configuration and pc.
*2 installed via internet connection.
*3 requires mac os x 10.4.11 or later.
