Contact Supplierwe are offering hd-sdi outdoor dome camera, 2 megapixel 1080p full hd image, 2.8~12mm.
. vandal-resistant dome resists attacks and tampering
. automatic ir cut filter switches between color and b&w as per changes in ambient lighting and ensures accurate color reproduction in daylight and enhanced b&w images at night
. 3-axis positioning allows you to easily mount the camera onto a wall or a ceiling, and position the lens in the preferred direction

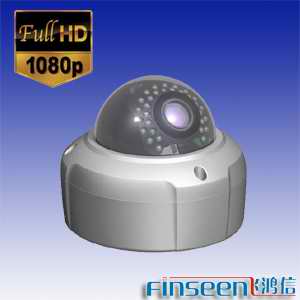

vandal resistant 2.8-12mm vari focus hd sdi ir dome camera fs-sdi338-t
1) vadalproof ir dome camera, with bnc
2) 1/2.7” cmos, 2.0 mage-pixel,1080p(1920*1080)/30fps
3) progressive scan, 3 axis gimbal for ceiling and wall mounting
4) 1080p hd-3g-sdi output
5) high quality isp, ir cut filter, osd menu
6) video signal with no compression and without delay
7) ir leds: 30pcs of diameter 5mm, ir distance: 30m
8) lens:vari focus auto iris megapixel 2.8-12mm or 4-9mm
9) aluminum alloy case
10) manufacturer/brand: finseen
model fs-sdi338-t
effective resolution 1920x1080 (progressive scanning)
image sensor 1/2.7-inch cmos (omnivision ov2715)
ir view distance 30m
lens vf auto iris mega pixel 2.8 ~ 12mm or 4~9mm optional
lens control dc iris lens
min. illumination 1.0 lux with dss x 2 (f1.2, 30ire, agc on)
day & night icr
s/n ratio more than 52db
output signals hd-sdi ( bnc sdi- connector x1 ) 1.0vp-p/75ω gamma
shutter 1/30 default (long exposure mode, ~1 sec)
automatic image control automatic exposure (aec), automatic gain control (agc),
automatic white balance (awb), automatic back light compensation (ablc)
program controls gain, exposure, frame rate, image size, horizontal mirror,
vertical flip, cropping, windowing, and panning
color gray with black
power supply 12v dc(±5%), 2a (24v optional)
operation temperature -20 to 75℃
