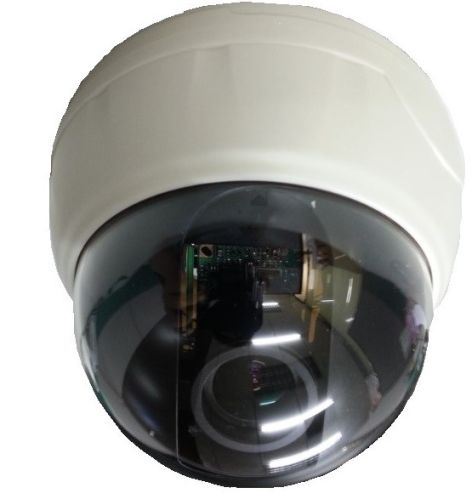

Dome Camera (SSV-AHD-D49S22V12)

₹ 2,165.90 / Piece

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Model : SSV-AHD-D49S22V12 Image Sensor : 12.8” Sony CMOS sensor, 2MP (IMX 322) Resolution : 1920(H) x 1080(V) @ 30FPS LENS : 2.8~12mm Megapixel Lens Effective Pixels : Approx. 2.0M pixels Video....

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 1996

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Model : SSV-AHD-D49S22V12
Image Sensor : 12.8” Sony CMOS sensor, 2MP (IMX 322)
Resolution : 1920(H) x 1080(V) @ 30FPS
LENS : 2.8~12mm Megapixel Lens
Effective Pixels : Approx. 2.0M pixels
Video Standard : PAL NTSC
DayNight Mode : Auto／Color／B&W
Back Light Compensation(BLC) : AUTO
Auto White Balance(AWB) : AUTO
Synchronization : Internal
Scanning System : 2:1 Interlace
SN Ratio : ≥ 80dB (AGC OFF)
Auto Electric Shutter(AES) : Auto 150 (160) ~1100,000 Sec.
Min. Illumination : 0.01 Lux (F2.0, AGC ON)
Video Output : AHD Video & Analog Video Switchable
IR Cut : Yes
Video Storage : 1H ≈ 1.506GB
Video Output : 1.0 Vp-p 75 ohm composite
Transmission Distance : 300 500 Meter over Coaxial Cable
200 Meter over Twisted pair Cable
OSD Menu : Multi-Languages OSD Setup Menu
Operation Environment : -20°C〜+50°C 85％RH
Power : DC 12V ±10%
Construction : Plastic
Dimension : 87mm(D) x 53mm(H)
Net Weight : 170g
Note : Specifications are subjected to change without notice
