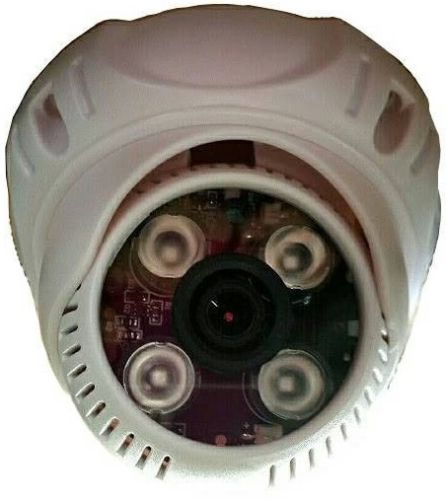

Contact SupplierModel : SSV-TVI-506S22
Image Sensor : 12.8” Sony CMOS sensor, 2MP (IMX 322)
Resolution : 1920(H) x 1080(V) @ 2530FPS
LENS : 3.6mm Megapixel Lens
Effective Pixels : Approx. 2.0M pixels
Video Standard : PAL NTSC
DayNight Mode : Auto/Color/B&W
Back Light Compensation(BLC) : AUTO
Auto White Balance(AWB) : AUTO
Synchronization : Internal
Scanning System : 2:1 Interlace
SN Ratio : ≥ 80dB (AGC OFF)
Auto Electric Shutter(AES) : Auto 150 (160) ~1100,000 Sec.
Min. Illumination : 0.01 Lux (F2.0, AGC ON)
Video Output : HD-TVI Video
IR Cut : Yes
Video Storage : 1H ≈ 1.506GB
Video Output : 1.0 Vp-p 75 ohm composite
IR Coverage Distance : 15~20 Meter
Transmission Distance : 300 500 Meter over Coaxial Cable
300 Meter over Twisted pair Cable
OSD Menu : Multi-Languages OSD Setup Menu
IR-LED : 4 x IR-LED Array
IR-LED Wavelength : 850 nm
Operation Environment : -20°C〜+50°C 85%RH
Power : DC 12V ±10%
Construction : Plastic
Dimension : 87mm(D) x 115mm(H)
Net Weight : About 170 ± 10g
Note : Specifications are subjected to change without notice
