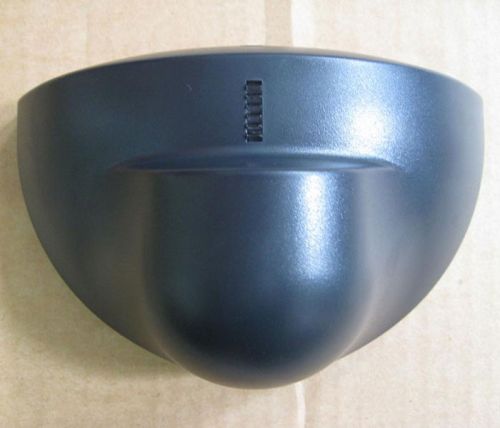

Door Sensor

We provide high quality Door Sensor which provides complete security. Highly reliable and efficient, the Door Sensor is fitted with advanced sensing technology. The Door Sensor is available at very reasonable price and is widely used because of its great functionality. Specifications Of Door Sensor

• Launch power density : 5mW/cm²
• Launch frequency : 24.125 GHz
• Installation height : Below 3.5M
• Supply Voltage : 12~24V AC / 12~30V DC
• Detection angle adjustment : 30, 45, 60
• Power consumption : 2W (Max)
• The biggest detection range : 4m (width) * 3m (depth)
• Temperature range : -40degree--+60degree (relative humidity: 0% to 95%, on-condensing
• Output relay maintain time : 0.5s
• IP protection rate : IP54
• Accessories : Wire line (3m), Screw (2pcs), Module (1pcs), User manual (1pcs)
