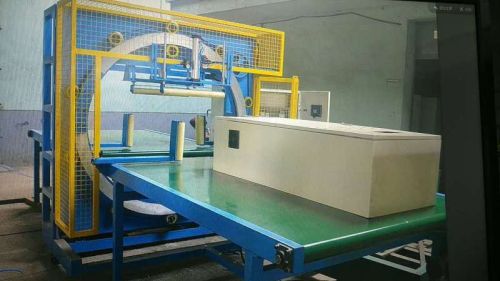

Door Windows Horizontal Wrapping Machine

Door windows horizontal type wrapping Model: QS2000 Related products: Horizontal ring wrapping machine,windows and door and panel or some other width products wrapping stretch film machine Performance and Features 1.Special conveying device is easy for loading&conveying the package strengthens the transfer capacity . 2.Indicator alarms automatically when trouble occurs.Trouble can be shown. 3.Photoelectric sensor is adopted for setting packing position. 4.Material tension could be adjusted automatically. 5.The turning ring is controlled by frequency converter. Overlap rate could be adjusted according to the requirement. 6.Siemens PLC control system. 7.Pneumatic grab,attach and cut the film tails automatically. 8.Film packing layers,times adjustable.(cycle pause capability) 9.Manually adjustable infeed and outfeed side guides. 10.Infeed and outfeed product photocells detection during running process automatically. Items S800EZ S1000EZ-S200EZ Package width 100-800mm 100-1600mm Package length Not limited Not limited Conveyor length customzied customzied Conveyor speed About 8m/min About 7m/min Rotating speed About 50rpm/min About 45rpm/min Conveyor height   100-1000mm 100-1500mm Max loading 3000kg 4000kg Overlap  scope About 30%-70% About 30%-70% Power  output About 9kw About 12kw Voltage Power 380V/3phase/ 50HZ/60HZ 380V/ 3phase/50HZ/60HZ Material Compound paper tape/knit tape/anti-rust tape/waterproof tape
