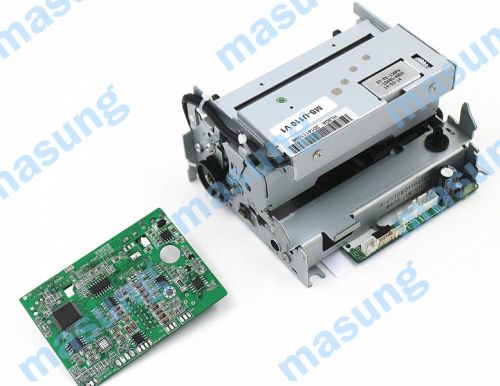

Dot Marix Printer

We offer 76mm dot marix printer used in healthcare equipments. Features:
brand name printer mechanism
high printing speed
compact panel mount structure
auto cutting (fullpartial)
copy function support
specifications:
mechanism m-u110
printing method serial impact dot matrix
pins 9 pins
font size 7*9
columns 42 columns(76 mm)30 columns(58mm)
printing speed 4.4 liness(76mm)5.6 liness (58mm)
character size 1.24 (w)*3.1(h) mm
line pitch approx 4.23 mm
columns pitch approx 1.6 mm
dots 210 dots(420 positions)line (76mm)
150 dots(300 positions)line (58mm)
voltage dc 24 v ±10%
average current 0.35aphase(cr motor); 0.3aphase(p.f. Motor)
paper size paper width: 76.2±0.7 mm
paper thickness maximum 0.2 mm
copy ability original + one copy
color bar blackblue
working environment temperature:0~50℃
humidity: 10~80% rh
reliability mechanism life: 150,000,000 characters
mcbf: 10,000,000 lines
printer head: 12,000,000 lines
interface ttlrs-232
command set escpos
supporting devices paper end sensor, paper near end sensor; mark sensor
accessories auto cutter; power supply unit; cable; ribbon cassette
outside dimension 127(w)*102(d)*53(h)
total weight approx 470 g
applications
pos printer, dot matrix printer, fiscal printer; tax bill printer, self-service kiosk and more
