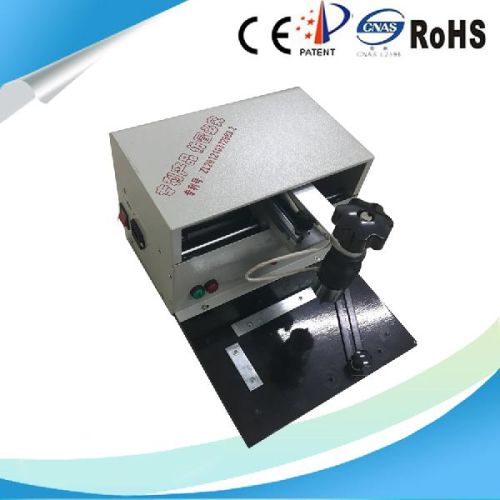

Dot peen marking machine

Electric dot peen engraving machine
patent electric dot peen marking works by mechanical and electrical striking a carbide or diamond stylus assembly against the surface of a part to be marked. The result is a succession of dots to create digits, text, logos, and 2 d date matrix coders. It is light and portable, no need air compressor, so it is very convenient.
Dot tag engraving machine features
1. Patent portable light electric type
2.marking speed:3-6 charactersecond
3.marking depth:0-1.5 mmdepths
4.graphics preview function
5. Alloy marking pin hardness hra95
6. Usb interface
electric metal engraving machine specifications
model :hae-e009 electric marking machine
operation system: windows 2000, windows xp, windows 7
marking area: 170×110 mm customize 250 x 150 mm, 300 x 200 mm
min character: 1×1 mm (character size controlled by software)
marking speed: 30-200 mms(3-6 charactersecond)
marking depth: 0- 1 mm (depends on material)
lifting height : 0-50mm
marking pin hardness: hrc 95°
impact frequency: 300-400 times second
marking material: all kinds of materials up to a hardness of hrc 65
multiple fonts: numerous fonds up to more than 100,supporting edit fonts
graphics: compatible with auto cad,corel draw, caxa
accuracy guarantee: character marking accuracy≤0.01 after 5years working
voltage : 220v, 50-60hz
power : 100w
continue working : about 10 hours
n.wg.w : 1517 kg
dimensions: 400 mm l×500 mm w×800 mm h
