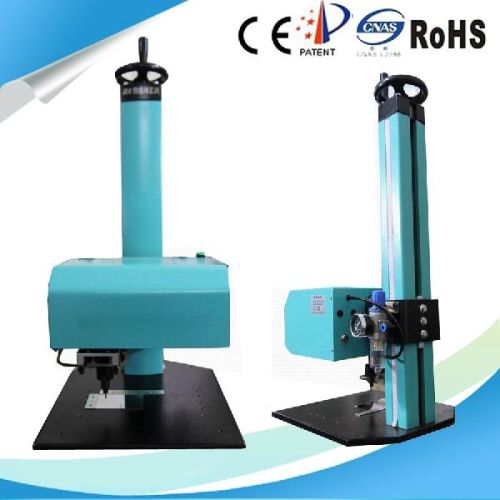

Dot Pin Marking Machine

Dot tag engraver product description
main performance: based on windows xpwindows 7 platform operating software, usb interface software, editing is so powerful that it is more convenient to use.can be printed in english and chinese characters and arabic numbers, any graphics, can be serial number printing, automatic calibration print.
Standards for two-way cylindrical guide (very stable), usb interface software, print range 170 * 110 mm (there are more 250-300 * 200 mm * 150 mm).
Pneumatic dot pin marking equipment features
1. Patent portable light electric type
2.marking speed:3-6 charactersecond
3.marking depth:0-1mmdepents
4.graphics preview function
5. Alloy marking pin hardness hra95
6. Usb interface, no need laptop
dot peen marker specifications
model: hae-p012 electric engraving machine
operation system: windows 2000, windows xp, windows 7
marking area: 170×110 mm customize 250 x 150 mm, 300 x 200 mm
min character: 1×1 mm (character size controlled by software)
marking speed: 30-200 mms(3-6 charactersecond)
marking depth: 0- 1 mm (depends on material)
lifting height: 0-50 mm
marking pin hardness: hrc95°
impact frequency: 300-400 timessecond
marking material: all kinds of materials up to a hardness of hrc65
multiple fonts: numerous fonds up to more than 100,supporting edit fonts
graphics: compatible with autocad,coreldraw, caxa
accuracy guarantee: character marking accuracy≤0.01 after 5 years working
voltage : ac110- 220v, 50-60hz
power : 100w
continue working: about 10 hours
n.wg.w: 3340kg
dimensions: 400 mm l×500 mm w×800 mm h
