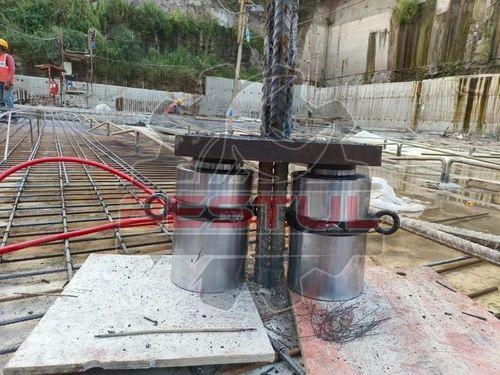

Double Acting Hydraulic Pile Load Testing Jack - Plain RAM 300 Ton

A Double Acting Hydraulic Pile Load Testing Jack with a 300-ton capacity is a powerful tool used for testing the load-bearing capacity of piles in construction. Here’s a breakdown of its key features and functionalities:

Features:

1. Double Acting Cylinder:

   • Hydraulic Mechanism: Utilizes hydraulic pressure to extend and retract the ram, providing precise control over the load applied.
   • Efficient Operation: Allows for smoother operation and better control compared to single-acting jacks.

2. 300 Ton Capacity:

   • High Load Rating: Capable of applying loads up to 300 tons, making it suitable for large-scale projects and heavy-duty applications.

3. Plain Ram Design:

   • Simplified Construction: The plain ram design is straightforward, which can simplify maintenance and operation compared to more complex designs.

4. Testing Capabilities:

   • Load Testing: Used to apply controlled loads to piles to determine their bearing capacity and settlement characteristics.
   • Monitoring: Helps in assessing the performance of piles under various load conditions.

5. Durability:

   • Robust Construction: Designed to withstand high loads and harsh working environments, ensuring long-term reliability.

6. Safety Features:

   • Pressure Relief Valves: Protects against overloading by ensuring that pressure limits are not exceeded.
   • Sturdy Build: Engineered to provide stable and reliable performance, minimizing the risk of failure during testing.

Applications:

• Construction Projects: Essential for ensuring that piles can support the loads of structures such as buildings, bridges, and other infrastructure.
• Geotechnical Studies: Helps in evaluating soil and pile interactions to make informed decisions on foundation design.

Operation:

• Setup: Typically involves placing the jack between the pile and a reaction frame or a load cell to apply the test load.
• Loading: Hydraulic pressure is gradually increased to apply the load. The ram extends to apply the desired force.
• Measurement: Load and displacement are monitored to assess the pile’s performance.

Maintenance:

• Regular Checks: Routine inspection of hydraulic fluid levels, seals, and other components is necessary to ensure proper functioning.
• Calibration: Periodic calibration may be required to maintain accuracy in load application and measurement.

Overall, the Double Acting Hydraulic Pile Load Testing Jack with a 300-ton capacity is a critical tool for verifying the load-bearing capacity of piles and ensuring the structural integrity of construction projects.
