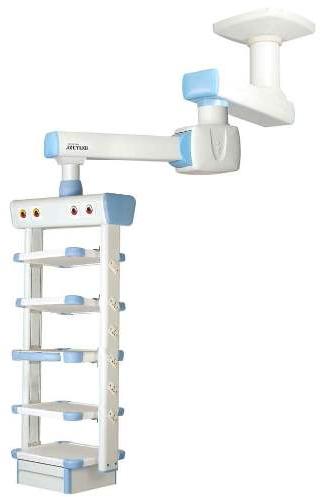

Double Arm Motorized Multi Function Pendant, Brand Name : JZK

We are offering double arm motorized multi-function pendant.
specifications
~medical pendants
~hospital instrument use
~customized,original factory
~iso9001,iso13485,ce0120
double arm electrical lifting surgical pendant
item no.: 2-002
the double arm electrical lifting surgical pendant is mainly used in the operating rooms, intensive care units, emergency rooms, etc. To supply medical gases, electrical power, communicating ports, and to load the medical equipments such as patient monitors, infusion pumps, surgical instruments, endoscopy equipments, etc.
name double arm electrical lifting surgical pendant(2-002)
material high strength aluminium alloy or customized
length of the arms one 750mm
two 750mm
loading capability one 250kg
two 200kg
medical gas outlets oxgen*2 ,vacuum*1,air*1
equipment shelf 2 pcs or customized
equipment drawer 1 pcs or customized
infusion sets include sets sockets,infusion pump,infusion poles. Etc
power input 220v 50-60hz or customized
gas outlets standards chinese/american/british/french/german standards.etc
rotary degree 340 degrees in each joint
mounted ceiling mounted accroding to customers' requirements
power sockets 6 pcs(accept customized)
communicate system rj45 rj15
grouding points 2 pcs
finishing antibacterial powder finishing
optional parts:
lcd monitor brackets;
infusion pump brackets;
infusion set brackets;
oxygen flowmeter;
suction units;
