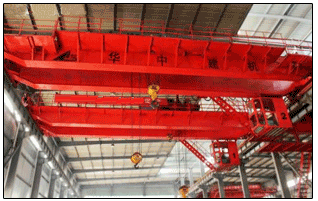

Double Beam E.O.T. Crane

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Technical Data of Over Head Crane When heavy loads and wide spans are required, the double girder traveling cranes show their strength. They consist of two....

View More Details

Send Enquiry

Company Information

Avtar Foundry & Workshop

Mandi Gobindgarh, Fatehgarh Sahib, Punjab

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Technical Data of Over Head Crane

When heavy loads and wide spans are required, the double girder traveling cranes show their strength. They consist of two torsion-free box girders. This makes them especially suitable for lifting and transporting loads over E.O.T. and for span of more than 25m.

These E.O.T. Cranes are available with load capacities up to 30 Tonnes and with spans up to 31 m. Articulated and carriage joints ensure positive contact of all four wheels with the track. The range of fixing arrangements allows the appropriate integration of E.O.T. cranes into new buildings. Just as with all other types of E.O.T cranes, the profiles of the main girder are optimally produced using commputers so that maximum performance with a minimum of deadweight can be achived. An advantage that has financial benefits.

Design: Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between coponents

Capacity (Tons)	Span (mtr.)	Wheel Base (mm)	Head Room Clearance HRC (mm)	Clearance End ELS/ERS (mm)	Hook Approach Left Side HALS(mm)	Hook Approach Right Side HALS(mm)	Wheel Load of Cranes (approx.)(Tons)	Total Wt. of Cranes (Ton)
5	10 15 20	3800 4000 4200	1600 1600 1700	250 250 250	900 900 900	800 800 800	5.8 6.7 7.3	10.2 12.5 15.5
7.5	10 15 20	3800 4000 4200	1600 1600 1700	250 250 250	950 950 950	850 850 850	8.4 9.4 10.0	13.0 16.0 18.5
10	10 15 20	3800 4000 4200	1800 1800 1900	250 250 275	1000 1000 1000	900 900 900	9.5 10.5 11.5	13.5 16.5 19.5
15	10 15 20	3800 4000 4200	2000 2200 2300	275 275 275	1000 1000 1000	900 900 900	13.5 15.7 16.8	18.5 21.5 25.0
20	15 20	4200 4400	2400 2500	300 300	1100 1100	900 900	18.4 19.3	24.0 27.5
25	15 20	4400 4600	2600 2800	300 300	1150 1150	1000 1000	21.6 22.8	26.0 30.0
30	15 20	4600 4800	2800 3000	300 300	1200 1200	1000 1000	26.0 28.0	30.0 36.5
40	15 20	4800 5000	3000 3200	325 325	1300 1300	1050 1050	31.8 33.4	35.0 40.0
50	15 20	5000 5200	3200 3500	350 350	1400 1400	1100 1100	32.0 33.5	41.0 47.5
60	15 20	5600 5800	3800 4000	400 400	1600 1600	1200 1200	37.3 38.9	60.0 71.0
80	15 20	5600 5800	4000 4200	450 450	1900 1900	1300 1300	39.0 41.0	78.0 90.0
100	15 20	5800 6000	4200 4500	450 450	1900 1900	1400 1400	49.5 52.0	95.0 110.0
