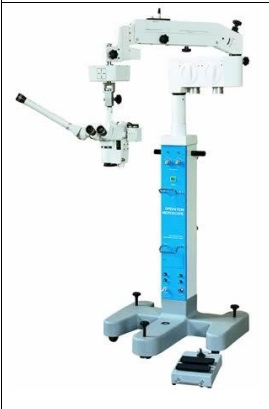

Double Binocular Operation Microscope For Orthopedics

We are offering double binocular operation microscope for orthopedics. Model lzl-6a is widely used in orthopedics, hand surgery and
plastic surgery for the anastomosis of capillaries and nerves.
It allows simultaneous operation of two doctors, and supports image taking
and video recording when equipped with ccd camera. This an excellent
medical instrument for surgery, teaching and research.
Features:
1. Continuous zoom optical system featuring clear image, strong stereo
perception and broad field of view
2. Surgeon and assistant can observe at the same magnification ratio.
3. Objective lenses with different focus lengths allow three different working distances for surgeries at
various depths.
4. Coaxial light source of up to 80000lx illumination has excellent performance for deep
operations
specifications:
1) binocular and same light route, magnification and field of view for two
operators
2) working distance: 200mm250mm300mm
3) magnification: 5x, 25x motorized continuous zoom or manual zoom
4) diameter of field of view 55 11mm
5) eyepiece: 12.5x, 27.5mm erfle wide angle eyepiece
6) built-in micrometer: accuracy 0.1mm; length of measurement 10mm
7) adjustment of eye distance: 5475mm
8) visual acuity adjustment: ±6d
9) motorized fine tuning: 40mm
10)up-down adjusting range: 500mm
11)maximum extending distance: 1200mm
12)swing angle of cross arm:240º
13)foot control x-y plane mover: 40mm forwardbackleftright
14)light source: 150w15v coaxial light source
15)power supply: 220v50hz
options:
ccd camera and connector for images taking and video recording
