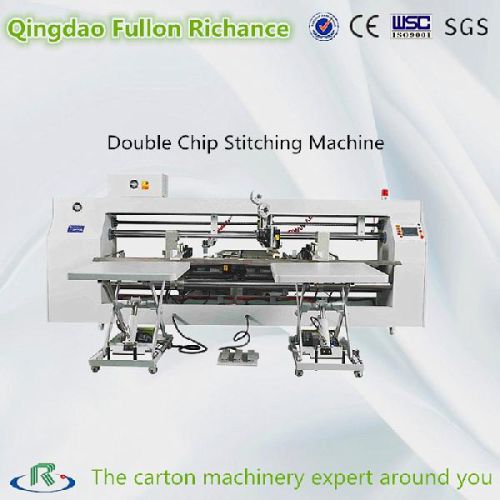

Electric Double Chip Nail Box Stitching Machine

Three Servo Driver Best Usage Double Chip Nail Box Stitching Machine
___________________________________________
§ About Us §
___________________________________________
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
__________________________________________
§ Main Configuration §
__________________________________________
1.Adopts PLC control system the control system as a whole.
2.Nailing machine control contactor box used in all Germany Simens brand.
3.Die blades carbide produced at the end of (wear)
4.Nailing machine complete set of nails used in all special steels production CNC precision machining.
5.Transform box size and adjust the carton takes only a minute to complete the nail margin, significant savings in time, easy to operate.
6.Nails covered boxes and cartons without cover (without cover boxes in order to nail down machinery should be).
7.Automatic nailing machine has automatic counting function, make the finished product count can be a set amount (1-99) stack sent to transport machinery to the end,
________________________________________________________________________
§ The Main Technical Parameters §
________________________________________________________________________
Model 200 240 270 300
Max. paper size (L+W)x2 4000mm 4800mm 5400mm 6000mm
Min. paper size (L+W)x2 1060mm 1060mm 1060mm 1060mm
Max. paper length 2850mm 2850mm 2850mm 2850mm
Min. paper length 350mm 350mm 350mm 350mm
Max. paper width 1000mm 1200mm 1350mm 1500mm
Min. paper width 180mm 180mm 180mm 180mm
Min. paper height 400mm 400mm 400mm 400mm
Nailing from 30-120mm 30-120mm 30-120mm 30-120mm
Number of nails 1-99 1-99 1-99 1-99
Machinery Speed
500 nailsmin 500 nailsmin 450 nailsmin 500 nail
