Double Column CNC Vertical Lathe Sales

Double column CNC vertical lathes are two coordinate two linked control of vertical lathes. We, Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd, can supply clients with manual vertical lathe sales,CNC vertical lathe sales and high speed vertical lathe sales. Vertical lathe can conduct turning end, drilling, car diameter,conical surface, circular surface, thread, taper thread and face thread. Vertical lathe machine can be equipped with pentagonal tool slide and square tool slide, achieving automatic operation cycle. Siemens sytem and Fanuc system can meet the requirements of CNC vertical lathe.
Double column CNC vertical lathe sales
Technical specification of Double column CNC vertical lathe sales  C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 16002000220025003000 mm
3 Maximum Weight of workpiece 1020 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 10001250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t

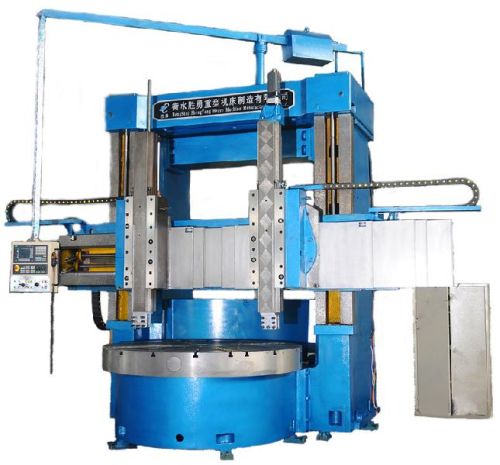

Photo of Double column vertical lathe sales
Recommend Double column CNC vertical lathe
