Double Column Metal Vertical Lathe Machine

As a high performance Double column vertical lathe machine can be suitable for processing small and medium plate, cover parts. Double column vertical lathes feature high strength cast iron base, and its column is with good anti-seismic function. Column is closed by gantry frame, and the structure dimension and stress state are optimized by finite element analysis. Base, table, bed, beams and other large pieces adopt high strength, good wear resistance, gray cast iron and tempering treatment to eliminate internal stress, no deformation. Double column vertical lathe machine can be utilized in processing external column faces, circular conical surfaces,head faces, shotted, severance of car wheel lathes.

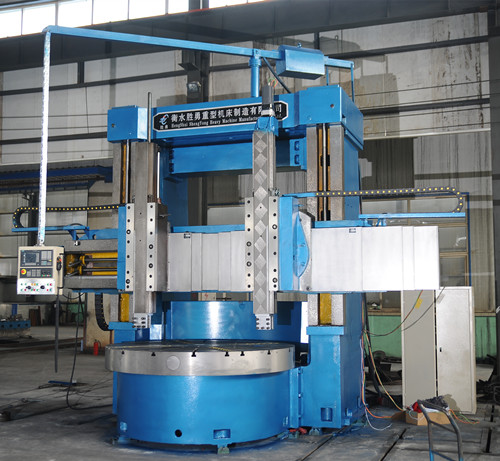

Double Column Metal Vertical Lathe machine













Technical specification of Double Column Metal Vertical Lathe machine C5240
1 Maximum turning diameter 4000 mm
2 Maximum Height of workpiece 1600200025003000 mm
3 Maximum Weight of workpiece 102032 t
4 Table diameter 3150 mm
5 Speed range of table 2-63 rmin
6 Maximum torque 63 KNmin
7 Vertical Travel of tool post 10001250 mm
